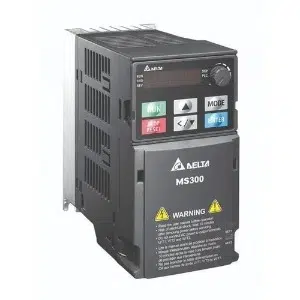

VFD7A5MS21ENSAA: Delta 7.5A 230V Single-phase Motor
Technical Specifications of VFD7A5MS21ENSAA Delta 7.5A 230V Single-phase Motor:
| Spec | Value |
|---|---|
| Series Name | MS300 |
| Input Voltage Frequency | 230V, Single-phase AC 200 V ~240 V (-15% ~ +10%), 50 / 60 Hz |
| Applicable Motor Output ( kW) | 1.5 kW |
| Applicable Motor Output (HP) | 2 HP |
| Output Frequency | 0.00 ~ 599.00 Hz (±0.1%) |
Delta 7.5A 230V Single-phase Motor VFD7A5MS21ENSAA Technical Specifications:
| Specification | Value |
|---|---|
| Series Name | MS300 |
| Input Voltage / Frequency | 230V, Single-phase AC 200 V ~240 V (-15% ~ +10%), 50 / 60 Hz |
| Applicable Motor Output ( kW) | 1.5 kW |
| Applicable Motor Output (HP) | 2 HP |
| Heavy Duty Rated Output Current (A) | 7.5 A |
| Normal Duty Rated Output Current (A) | 8.5 A |
| Cooling Method | Natural air cooling |
| IP Level | IP40 (Anti-dust) |
| EMC Filter | None EMC Filter |
| Safe Torque Off (STO) | Integrated STO |
| Model Type | Standard Model |
| Braking Chopper | Built-in Braking Chopper |
| Output Frequency | 0.00 ~ 599.00 Hz (±0.1%) |
| MODBUS COM | - |
| Control Methods | V/F, SVC, FOC Sensorless |
| Size: W × H (mm) | 87×157 |
| Size: D (mm) | 152 |
| Net Weight | 3.1 kg |
Send Us an Email for Delta 7.5A 230V Single-phase Motor, VFD7A5MS21ENSAA with the special pricing. Engineering Specifications of VFD7A5MS21ENSAA detail Standard Model, Integrated STO, None EMC Filter & Built-in Braking Chopper. Moreover, it features 1.5 kW, 2 HP & 7.5 A. It's Time to get a Quote for your requirement of Delta 7.5A 230V Single-phase Motor. We excel in offering more cost-effective and supportive solutions than other Dealers.
