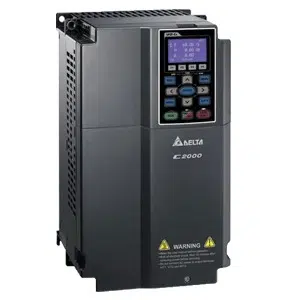

VFD900C23A: Delta 90kW Compact Power
Technical Specifications of Delta 90kW Compact Power VFD900C23A:
| Spec | Value |
|---|---|
| Input Voltage / Frequency | 3-phase AC 200V ~ 240V (-15%~+10%), 50/60Hz |
| Output Capacity (kVA) Normal Duty | 138 kVA |
| Output Current (A) Normal Duty | 346 A |
| Applicable Motor Output (kW) Normal Duty | 90 kW |
| Applicable Motor Output (HP) Normal Duty | 120 HP |
Delta 90kW Compact Power VFD900C23A Technical Specifications:
| Specification | Value |
|---|---|
| Input Voltage / Frequency | 3-phase AC 200V ~ 240V (-15%~+10%), 50/60Hz |
| Output Capacity (kVA) Normal Duty | 138 kVA |
| Output Current (A) Normal Duty | 346 A |
| Applicable Motor Output (kW) Normal Duty | 90 kW |
| Applicable Motor Output (HP) Normal Duty | 120 HP |
| Cooling Method | Fan Cooling |
| Efficiency (%) | 98.2 |
| IP Level | IP20 |
| NEMA Protection Level | No NEMA Protection Level |
| Storage/Transportation Temperature | -25 ~ 70 |
| Braking Chopper | Optional Braking Chopper |
| Control Method | Pulse Width Modulated (PWM) |
| Installation Type | Wall mount |
| V/F Curve | 4-point adjustable V/F curve and square curve |
| Input Frequency Tolerance | 47 ~ 63Hz |
| Voltage Tolerance | 170 ~ 264Vac |
| Drive Weight (Kg) | 86.5± 1.5 kg |
Get A Quote for Delta 90kW Compact Power, VFD900C23A at the best price. Here are the brief Technical Specifications of VFD900C23A are Optional Braking Chopper, Pulse Width Modulated (PWM), Wall mount & No NEMA Protection Level. And it offers 138 kVA 346 A & 90 kW. It's Time to get a Quote for your requirement of Delta 90kW Compact Power. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
