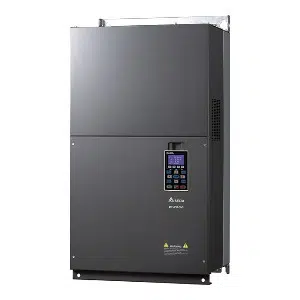

VFD900C43A: Delta 90kW VFD
Technical Specifications of Delta 90kW VFD VFD900C43A:
| Spec | Value |
|---|---|
| Input Voltage / Frequency | 3 - phase AC 380V ~ 480V (-15%~+10% ), 50/60Hz |
| Output Capacity (kVA) Normal Duty | 143 kVA |
| Output Current (A) Normal Duty | 180 A |
| Applicable Motor Output (kW) Normal Duty | 90 kW |
| Applicable Motor Output (HP) Normal Duty | 125 HP |
Delta 90kW VFD VFD900C43A Technical Specifications:
| Specification | Value |
|---|---|
| Input Voltage / Frequency | 3 - phase AC 380V ~ 480V (-15%~+10% ), 50/60Hz |
| Output Capacity (kVA) Normal Duty | 143 kVA |
| Output Current (A) Normal Duty | 180 A |
| Applicable Motor Output (kW) Normal Duty | 90 kW |
| Applicable Motor Output (HP) Normal Duty | 125 HP |
| Cooling Method | Fan Cooling |
| Efficiency (%) | 98.2 |
| IP Level | IP20 |
| NEMA Protection Level | No NEMA Protection Level |
| Storage/Transportation Temperature | -25 ~ 70 |
| Braking Chopper | Optional Braking Chopper |
| Control Method | Pulse Width Modulated (PWM) |
| Installation Type | Wall mount |
| V/F Curve | 4-point adjustable V/F curve and square curve |
| Input Frequency Tolerance | 47 ~ 63Hz |
| Voltage Tolerance | 323 ~ 528 VAC |
| Drive Weight (Kg) | 64.8±1.5 kg |
Ask for the Pricing of Delta 90kW VFD, VFD900C43A at unbeatable prices. Detailed Specifications of VFD900C43A feature No NEMA Protection Level, Optional Braking Chopper, Pulse Width Modulated (PWM) & Wall mount. Moreover, it features 143 kVA, 180 A & 90 kW. Now's the Time to Secure a Quote for your requirement of Delta 90kW VFD. We're committed to offering more favorable pricing and more responsive support than other Traders.
