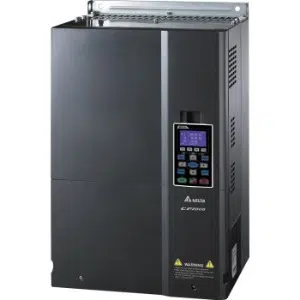

VFD900CP43A-21: Delta 125HP VFD
Technical Specification of Delta 125HP VFD VFD900CP43A-21:
| Spec | Value |
|---|---|
| Input Voltage / Frequency | 460V, Three-Phase AC 380V~480V(-15%-+10%),50/60Hz |
| Output Capacity (kVA) Normal Duty | 180 A |
| Applicable Motor Output (kW) Normal Duty | 90 kW |
| Applicable Motor Output (HP) Normal Duty | 125 HP |
Delta 125HP VFD VFD900CP43A-21 Technical Specifications:
| Specification | Value |
|---|---|
| Input Voltage / Frequency | 460V, Three-Phase AC 380V~480V(-15%-+10%),50/60Hz |
| Output Capacity (kVA) Normal Duty | 143 kVA |
| Output Current (A) Normal Duty | 180 A |
| Applicable Motor Output (kW) Normal Duty | 90 kW |
| Applicable Motor Output (HP) Normal Duty | 125 HP |
| Cooling Method | Fan Cooling |
| Efficiency (%) | 97 |
| IP Level | IP20 |
| NEMA Protection Level | NEMA 1 |
| Storage/Transportation Temperature | -25ºC ~ +70ºC |
| Braking Chopper | Optional Braking Chopper |
| Control Method | Pulse Width Modulation (PWM) |
| Installation Type | Wall-Mounting |
| V/F Curve | 4 point adjustable V / F curve and square curve |
| Input Frequency Tolerance | 47~63Hz |
| Voltage Tolerance | 232~528Vac |
Obtain a Quote for Delta 125HP VFD, VFD900CP43A-21 at economical prices. Specifications Overview for VFD900CP43A-21 reveals NEMA 1, Optional Braking Chopper, Pulse Width Modulation (PWM) & Wall-Mounting. It also includes 143 kVA, 180 A & 90 kW. Take the First Step with a Quote for your requirement of Delta 125HP VFD. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
