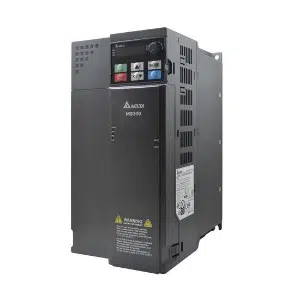

VFD9A0MS43AFSHA: Delta 460V 3-phase 3.7kW Frequency Drive
Technical Specifications of VFD9A0MS43AFSHA Delta 460V 3-phase 3.7kW Frequency Drive:
| Spec | Value |
|---|---|
| Series Name | MS300 |
| Input Voltage Frequency | 460V, Three-phase AC 380 V ~480 V，50 / 60 Hz |
| Applicable Motor Output ( kW) | 3.7 kW |
| Applicable Motor Output (HP) | 5 HP |
| Output Frequency | 0.00 ~ 1500.0Hz (±0.1%) |
Delta 460V 3-phase 3.7kW Frequency Drive VFD9A0MS43AFSHA Technical Specifications:
| Specification | Value |
|---|---|
| Series Name | MS300 |
| Input Voltage / Frequency | 460V, Three-phase AC 380 V ~480 V，50 / 60 Hz |
| Applicable Motor Output ( kW) | 3.7 kW |
| Applicable Motor Output (HP) | 5 HP |
| Heavy Duty Rated Output Current (A) | 9 A |
| Normal Duty Rated Output Current (A) | 10.5 A |
| Cooling Method | Fan cooling |
| IP Level | IP20 |
| EMC Filter | Built-in EMC Filter |
| Safe Torque Off (STO) | Integrated STO |
| Model Type | High Speed Model |
| Braking Chopper | Built-in Braking Chopper |
| Output Frequency | 0.00 ~ 1500.0Hz (±0.1%) |
| MODBUS COM | - |
| Control Methods | V/F, SVC, FOC Sensorless |
| Size: W × H (mm) | 87×157 |
| Size: D (mm) | 179 |
| Net Weight | 3.95 kg |
IndMALL Dealing in Delta 460V 3-phase 3.7kW Frequency Drive, VFD9A0MS43AFSHA at the best rates. Operational Specifications for VFD9A0MS43AFSHA are High Speed Model, Integrated STO, Built-in EMC Filter & Built-in Braking Chopper. And It Delivers 3.7 kW, 5 HP & 9 A. Unlock Exclusive Pricing with a Quote for your requirement of Delta 460V 3-phase 3.7kW Frequency Drive. Experience the advantage of our pricing and support against other Traders.
