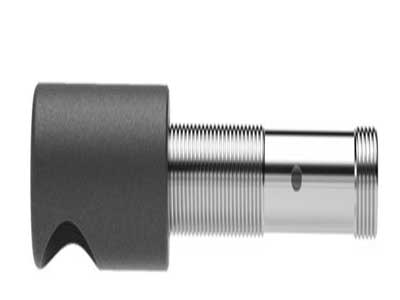

Dietz Ultrasonic Sensor | DUP Ultrasonic Switch

At IndMALL Automation, we offer Dietz ultrasonic sensors for industrial applications. These sensors measure distance, detect objects, and sense levels. They feature IP67 ratings for reliability in harsh environments. Models like DUP-S-150 and DUP-S-200 have M12 thread sizes. They offer adjustable sensing ranges and analog outputs (4-20 mA or 0-10 V). Operating voltages are 10 to 30 V DC. Temperature tolerance ranges from -25°C to +70°C. Choose Dietz ultrasonic sensors for accuracy and durability in automation projects.

Dietz Ultrasonic Sensor: DUPS 150 CP TOR 24 CA

Model: DUP-S-150-CP-TOR-24-CA
Thread Size: M12
Sensing Range: 20 mm to 150 mm
Output Type: Analog (4-20 mA / 0-10 V)
Operating Voltage: 10 to 30 V DC
Protection Class: IP67
Temperature Range: -25°C to +70°C

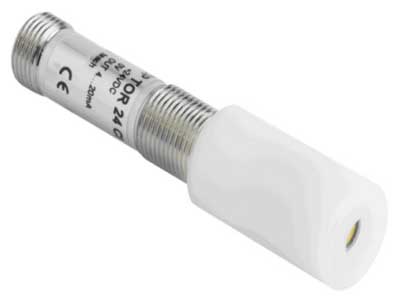

DUPS 150 CP TOR 24 CI

Model: DUP-S-150-CP-TOR-24-CI
Thread Size: M12
Sensing Range: 20 mm to 150 mm
Output Type: Analog (4-20 mA)
Operating Voltage: 10 to 30 V DC
Protection Class: IP67

DUPS 150 FB TOR 24 CA

Model: DUP-S-150-FB-TOR-24-CA
Thread Size: M12
Sensing Range: 20 mm to 150 mm
Output Type: Analog (4-20 mA / 0-10 V)
Operating Voltage: 10 to 30 V DC
Protection Class: IP67
Applications: Distance measurement, object detection, level sensing

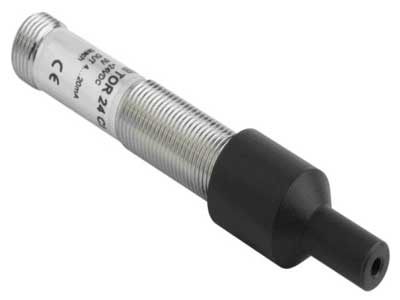

DUPS 150 FB TOR 24 CI

Model: DUP-S-150-FB-TOR-24-CI
Thread Size: M12
Sensing Range: 20 mm to 150 mm
Output Type: Analog (4-20 mA)
Operating Voltage: 10 to 30 V DC
Protection Class: IP67

DUPS 200 TOR 24 CA

Model: DUP-S-200-TOR-24-CA
Thread Size: M12
Sensing Range: 20 mm to 200 mm
Output Type: Analog (4-20 mA / 0-10 V)
Operating Voltage: 10 to 30 V DC
Protection Class: IP67
Applications: Distance measurement, object detection, level sensing

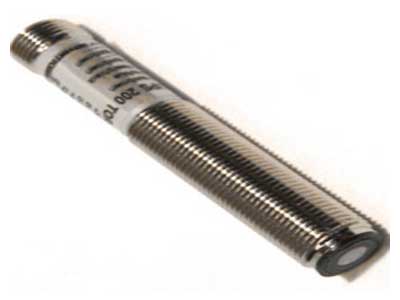

DUPS 200 TOR 24 CI

Model: DUP-S-200-TOR-24-CI
Sensing Range: 20 mm to 200 mm
Output Type: Analog (4-20 mA)
Operating Voltage: 10 to 30 V DC
Protection Class: IP67
Applications: Distance measurement, object detection, level sensing

DUPS 180 TOR 24 CWA

Model: DUP-S-180-TOR-24-CWA
Thread Size: M12
Sensing Range: 20 mm to 180 mm
Output Type: Analog (4-20 mA / 0-10 V)
Operating Voltage: 10 to 30 V DC
Protection Class: IP67
Applications: Distance measurement, object detection, level sensing

At IndMALL Automation, we provide high-quality Dietz ultrasonic sensors. These sensors are ideal for industrial applications. Dietz ultrasonic sensors excel in distance measurement and object detection. They feature a robust M12 threaded design. The sensing range varies from 20 mm to 200 mm. These sensors offer analog outputs like 4-20 mA or 0-10 V. They operate reliably between 10 to 30 V DC. With IP67 protection, they withstand harsh environments. The temperature range is -25°C to +70°C. Dietz ultrasonic sensors ensure precise, reliable performance. Choose IndMALL Automation for your ultrasonic sensor needs. Enhance your operations with our dependable products.

Frequently Asked Questions

What is an ultrasonic sensor used for?

An ultrasonic sensor is used to measure an object’s distance and velocity. It is a non-contact sensor that emits ultrasonic waves. The sensor measures the time it takes for the waves to return. This data helps in calculating precise distance and speed. Ultrasonic sensors are commonly used in automotive, industrial, and robotic applications.

Can an ultrasonic sensor detect humans?

Yes, an ultrasonic sensor can detect humans. It is a type of proximity sensor. Ultrasonic sensors are effective for human presence detection. They emit sound waves and measure the echo. This helps in identifying the presence and distance of a person. These sensors are used in security and automation systems.

What is the working principle of sensor?

Sensors work by detecting physical changes in their environment. These changes can be in temperature, light, motion, or other factors. The sensor then converts these changes into electrical signals. These signals can be analog voltages or digital outputs. This process allows sensors to provide accurate measurements for various applications.

Why are sensors useful?

Sensors are useful for process control, monitoring, and safety. They provide accurate and real-time data. This data helps in making informed decisions. Sensors enhance efficiency and automation in industrial applications. They also improve safety by detecting potential hazards. Their versatility makes them essential in various fields.
