Can a VFD Damage a Motor?

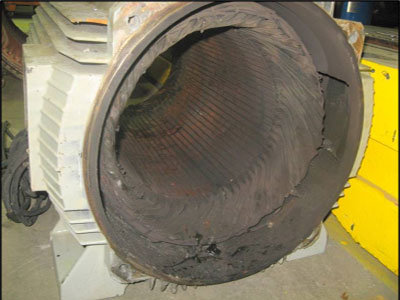

Key Takeaway

Yes, a VFD (Variable Frequency Drive) can damage a motor if not used correctly. VFDs can create shaft currents in electric motors, which may lead to bearing damage. This damage can impact productivity and increase operating costs due to more frequent maintenance and repairs.

To prevent motor damage, it’s essential to use proper filtering and grounding techniques. Regular inspections and maintenance can also help identify and address potential issues early. Ensuring that the VFD is correctly matched to the motor and application can further minimize the risk of damage. Proper use and maintenance of VFDs can help protect your motor and ensure efficient operation.

Potential Risks of Using VFDs

Variable Frequency Drives (VFDs) are integral in modern industrial applications, providing precise control over motor speed and efficiency. However, it’s essential to recognize that improper use of VFDs can pose risks to motors. One potential risk is voltage spikes, which can occur due to the switching nature of VFDs. These spikes can stress the motor insulation, leading to premature failure. Additionally, VFDs can cause increased motor heating because of higher frequency harmonics, which can degrade motor components over time. Understanding these risks is crucial for engineers to ensure safe and effective VFD usage.

Common Causes of Motor Damage

Several factors can lead to motor damage when using Variable Frequency Drives (VFDs). One common cause is inadequate grounding and shielding, which can result in electromagnetic interference (EMI) affecting motor performance and nearby equipment. EMI can induce erratic motor behavior, increase operational noise, and even cause control system failures. To mitigate this, it is crucial to ensure that all wiring is properly grounded and shielded to minimize the effects of electrical noise.

Another significant issue is improper parameter settings within the VFD, such as incorrect acceleration and deceleration times, which can cause mechanical stress on the motor. If these ramp times are too short, the motor experiences sudden changes in speed, leading to excessive wear on mechanical components like bearings and shafts. Additionally, setting the VFD’s torque limits too high can lead to overheating and increased mechanical strain, further risking motor damage.

Furthermore, not all motors are designed for VFD compatibility. Using a standard motor without proper VFD ratings can lead to overheating and insulation breakdown due to the high-frequency switching of the VFD, which standard motors are not equipped to handle. Motors not rated for VFD use may suffer from increased bearing currents and insulation stress, leading to premature failure. Identifying and addressing these causes is vital to prevent motor damage and ensure reliable operation.

Preventative Measures to Protect Motors

To protect motors from potential damage caused by VFDs, several preventative measures can be implemented. First, using motors specifically rated for VFD use is crucial. These motors are designed to handle the electrical stresses imposed by VFDs, including higher frequency and voltage variations. They feature enhanced insulation systems and are built to withstand the increased thermal and mechanical demands.

Additionally, installing line reactors or filters can mitigate voltage spikes and reduce harmonic distortion, safeguarding the motor insulation. Line reactors help to smooth out the waveform and reduce the impact of transients, while filters can eliminate unwanted harmonics that could otherwise damage the motor. Proper grounding and shielding are also essential to minimize EMI, ensuring stable and interference-free motor operation.

Adjusting VFD parameters, such as ramp times and torque limits, to match the motor’s capabilities can prevent mechanical stress. For instance, setting appropriate acceleration and deceleration rates ensures smooth speed transitions, reducing wear on mechanical components. Regular maintenance and monitoring are key to detecting early signs of wear and ensuring ongoing motor protection. This includes routine checks of the motor and VFD, inspecting for unusual noises, vibrations, and temperature changes, and ensuring that all connections are secure and in good condition.

Implementing these preventative measures helps in extending the motor’s lifespan and maintaining optimal performance, thus leveraging the full benefits of VFD technology without compromising the motor’s integrity.

Diagnostic Techniques for Motor Issues

Diagnosing motor issues in systems using VFDs requires a systematic approach to ensure accurate identification and resolution of problems. Thermal imaging is a highly effective diagnostic tool for detecting hotspots, which can indicate overheating. By using a thermal camera, engineers can visualize temperature distribution across the motor and identify areas that may be experiencing excessive heat due to overloading, poor ventilation, or electrical faults.

Vibration analysis is another crucial technique, as it can reveal mechanical stress or misalignment caused by improper VFD settings or motor wear. Utilizing vibration sensors and analyzers, technicians can monitor the motor’s vibration patterns and detect anomalies that might suggest issues such as unbalanced loads, bearing failures, or shaft misalignment.

Monitoring motor current and voltage is essential for identifying electrical problems like harmonic distortion or electrical imbalances. By using multimeters and power quality analyzers, engineers can measure and analyze the current and voltage waveforms to detect deviations from normal operating conditions. This can help pinpoint issues such as phase imbalances, overcurrent conditions, or harmonic interference.

Insulation resistance testing is also critical for diagnosing potential insulation breakdowns before they lead to motor failure. Using an insulation resistance tester (megohmmeter), engineers can measure the resistance of the motor’s insulation system to ensure it meets the required standards. Low insulation resistance values can indicate deterioration, contamination, or moisture ingress, which need to be addressed promptly.

By employing these diagnostic techniques, engineers can accurately identify motor issues early, implement corrective measures, and ensure motor longevity and reliability.

Best Practices for Safe VFD Use

Implementing best practices for VFD use is essential to enhance motor safety and performance while preventing potential issues. One key practice is ensuring that the VFD and motor are properly matched in terms of ratings and specifications. This involves selecting a VFD that can handle the motor’s power requirements and operational characteristics, preventing overloading and ensuring efficient performance.

Regularly inspecting and maintaining both the VFD and the motor is critical to identifying potential issues before they escalate. Scheduled maintenance activities should include cleaning, checking connections, and replacing worn components. This proactive approach helps maintain optimal performance and prevents unexpected failures.

Properly configuring VFD parameters to suit the specific application can prevent mechanical and electrical stress on the motor. Parameters such as acceleration and deceleration rates, torque limits, and frequency settings should be adjusted to match the motor’s capabilities and the application’s requirements. This ensures smooth operation and minimizes the risk of damage.

Utilizing protective devices, such as surge protectors and harmonic filters, can mitigate the risks of voltage spikes and harmonic distortion. Surge protectors safeguard against transient overvoltages, while harmonic filters reduce the impact of harmonic currents on the motor and the electrical system.

Providing adequate cooling and ventilation for both the VFD and the motor is essential to prevent overheating. Ensuring proper airflow and using external cooling fans or heat sinks can help dissipate heat effectively, maintaining optimal operating temperatures.

By following these best practices, engineers can significantly enhance the safety, reliability, and performance of VFDs and motors, ensuring long-term operational success.

Conclusion

In conclusion, while VFDs offer significant benefits in controlling motor speed and efficiency, they can pose risks if not used correctly. Understanding the potential risks and common causes of motor damage is the first step in mitigating these issues. Implementing preventative measures, utilizing diagnostic techniques, and adhering to best practices can protect motors from damage and ensure safe, reliable operation. By taking a proactive approach, engineers can leverage the advantages of VFD technology while minimizing risks, thereby enhancing the overall performance and lifespan of both the motors and the VFDs. This balanced approach ensures that the benefits of VFDs are fully realized without compromising motor safety.
