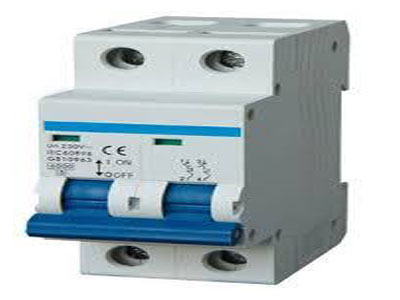

Is MCB A Breaker?

Key Takeaway

Yes, an MCB (Miniature Circuit Breaker) is a type of breaker designed to protect electrical circuits from overloads and short circuits. When it detects an abnormal condition, such as an excessive current flow, it automatically trips or switches off the circuit to prevent damage. Unlike a fuse, which burns out and needs to be replaced, an MCB can be easily reset after the fault is corrected.

MCBs are commonly used in residential and commercial electrical systems. They provide reliable protection, are easy to use, and help prevent electrical fires or equipment damage. Simply resetting the MCB after solving the issue makes them more convenient and safer than traditional fuses.

How MCBs Function as Circuit Breakers

An MCB (Miniature Circuit Breaker) is a type of circuit breaker designed to protect electrical circuits from overloads and short circuits. When the current exceeds its rated limit, the MCB automatically cuts off the power supply, preventing damage to appliances, wiring, or potential fire hazards.

It uses a bimetallic strip to detect overcurrent; when overheated, it bends and causes the MCB to trip. For short circuits, an electromagnet triggers an instant trip. Unlike traditional fuses, MCBs can be reset manually, providing a more convenient and efficient solution.

This dual function of preventing overloads and short circuits ensures that electrical systems remain safe and functional without needing constant maintenance or replacements.

Differences Between MCBs and Other Types of Breakers

While MCBs are widely used in residential and light commercial electrical systems, other types of circuit breakers serve specific purposes, especially in more demanding environments. One major difference between MCBs and devices like MCCBs (Molded Case Circuit Breakers) or ACBs (Air Circuit Breakers) is their current rating capacity. MCBs are typically rated for up to 125 amps, making them suitable for smaller circuits and lighter loads, such as household appliances or lighting systems.

In contrast, MCCBs and ACBs handle much higher current ratings, often in the range of 100 to 2,500 amps. MCCBs are commonly used in industrial settings where higher power is required. They also provide additional features like adjustable trip settings, allowing for more control over protection levels. ACBs, on the other hand, are used in extremely high-power applications, such as industrial plants or power stations, where they can interrupt large currents under load conditions.

Additionally, while MCBs protect against both overloads and short circuits, RCCBs (Residual Current Circuit Breakers) or RCDs (Residual Current Devices) are designed specifically to detect earth leakages, offering personal protection from electrical shocks. Understanding these differences helps ensure the right breaker is used for each specific application.

When to Use MCBs in Electrical Systems

MCBs are the go-to solution for residential and commercial electrical systems due to their reliability, ease of use, and reusability. They are most commonly used in circuits where the current load is relatively low, such as lighting, small appliances, and household outlets. MCBs are ideal for ensuring that these circuits are protected from overloads, which can occur when too many devices are connected, or from short circuits, which happen due to faulty wiring or equipment failures.

In homes, MCBs are typically installed in the distribution board (also known as the consumer unit), where they safeguard individual circuits like those for the kitchen, bedroom, or lighting. Each circuit has its own dedicated MCB, which ensures that if one circuit overloads, the rest of the house remains unaffected. This prevents large-scale power outages and minimizes inconvenience.

For commercial applications, MCBs are also suitable for protecting smaller loads such as office lighting or outlets. They are particularly useful in scenarios where quick resetability is needed, as they can be easily restored after tripping without requiring a technician to replace the fuse.

Safety Advantages of MCBs Over Traditional Breakers

MCBs offer several safety advantages over traditional fuses and other older types of circuit breakers. One of the primary benefits is their ability to be reset rather than replaced. Traditional fuses must be physically removed and replaced after they blow, which can be inconvenient and costly. In contrast, an MCB can be easily switched back on after resolving the cause of the trip, reducing downtime and maintenance costs.

Additionally, MCBs are much more precise when it comes to tripping. Traditional fuses can degrade over time, which can lead to either premature tripping or failure to trip when necessary. MCBs, however, are highly reliable and will trip exactly when they need to, providing consistent protection.

MCBs also provide better protection against short circuits. In the event of a short circuit, an MCB can disconnect the circuit in milliseconds, preventing severe damage to appliances and reducing the risk of electrical fires. Traditional breakers may not react as quickly or reliably, making MCBs a superior option in terms of safety and efficiency.

Common MCB Applications in Homes and Businesses

MCBs are versatile devices that find widespread use in both residential and commercial settings. In homes, they are commonly used to protect circuits dedicated to lighting, kitchen appliances, and HVAC systems. For example, a dedicated MCB may be installed for the air conditioning system, which experiences high inrush currents when starting up. The MCB ensures that this appliance is protected from overload while maintaining smooth operation.

In commercial spaces, MCBs protect office equipment, lighting systems, and small machinery. Businesses rely on MCBs to minimize disruptions caused by electrical faults while ensuring that critical systems are protected. Small industrial workshops may also use MCBs to safeguard equipment that draws moderate amounts of power, such as drills or compressors.

Due to their compact size and ease of installation, MCBs are often the first choice for these everyday applications, offering reliable protection without requiring the bulky setup of larger breakers like MCCBs.

Conclusion

In conclusion, MCBs act as miniature circuit breakers that play a vital role in protecting electrical systems from overloads and short circuits. Their ability to trip and reset quickly makes them a practical, efficient solution for both residential and commercial applications. While they perform functions similar to fuses and switches, MCBs offer superior protection, greater convenience, and enhanced safety. By incorporating MCBs into modern electrical systems, users can enjoy peace of mind knowing that their circuits are safeguarded from common electrical hazards.
