What Is A Smps Power Supply?
Key Takeaway

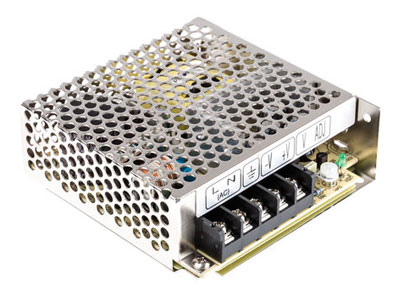

An SMPS (Switched-Mode Power Supply) is an advanced type of power supply designed for efficient electrical power conversion using a switching regulator. This technology involves quickly switching the power on and off to control the output voltage and current, which significantly increases efficiency by reducing energy loss as heat. SMPS units are widely used because they provide more power with less heat generation compared to traditional linear power supplies.
The primary function of an SMPS is to convert electrical power from a source, which could be either AC or DC, to suit different DC loads. It adjusts the voltage and current according to the needs of the load while maintaining stability and safety. This makes SMPS ideal for a variety of applications, including computer power supplies, chargers, and LED drivers, where reliable and efficient power conversion is necessary.
Introduction to SMPS
Switch Mode Power Supplies (SMPS) are a crucial component in modern electronics, offering efficient power conversion and regulation. Unlike traditional linear power supplies, SMPS utilizes high-frequency switching techniques to convert electrical power efficiently. This method involves rapidly switching the power transistors on and off, allowing for smaller transformers and less heat generation. The result is significantly reduced energy loss and increased efficiency, often exceeding 80%.
SMPS are widely preferred in various applications due to their compact size, lightweight, and ability to handle a broad range of input voltages. As a new engineer, understanding the principles and benefits of SMPS is essential for designing and managing electronic systems that demand reliable and efficient power supply solutions. Mastery of SMPS technology ensures optimal performance and energy savings in modern electronic devices and systems.
Working Principle of SMPS
The working principle of a Switch Mode Power Supply (SMPS) revolves around high-frequency switching, which is key to its efficiency and compact design. Let’s break down the process step by step for better understanding:
Rectification of AC to DC: The first stage in an SMPS involves converting the input AC (Alternating Current) voltage from the mains supply to DC (Direct Current). This is achieved using a rectifier, which ensures that the voltage is now a steady DC, suitable for further processing.
High-Frequency Switching: Once the voltage is rectified to DC, a switching device, usually a transistor, chops this DC voltage into a high-frequency AC signal. This high-frequency switching is the core innovation of SMPS, allowing it to operate at much higher frequencies than traditional power supplies.
Transformation: The high-frequency AC signal is then passed through a transformer. The transformer’s role here is to step up or step down the voltage to the required level. The high frequency means that the transformer and other associated components can be much smaller and lighter compared to those used in linear power supplies.
Rectification and Filtering: After the transformer, the AC signal needs to be converted back to DC. This is done using another rectifier. Following rectification, the signal is passed through filters to smooth out any ripples or noise, resulting in a stable DC output voltage.
Output Regulation: One of the significant advantages of SMPS is the ability to adjust the duty cycle of the switching device. By controlling how long the switch is on versus off during each cycle, the SMPS can precisely regulate the output voltage and current. This ensures that the power supply can adapt to varying loads and maintain a consistent output.
The high-frequency operation of SMPS not only improves efficiency by reducing energy loss but also allows for the use of smaller, lighter components. This makes SMPS an ideal choice for modern electronic devices where space and weight are critical factors. Additionally, the ability to finely control the output through duty cycle adjustments enhances the performance and reliability of the power supply, making it suitable for a wide range of applications.
In summary, the working principle of SMPS involves converting AC to DC, chopping the DC into high-frequency AC, transforming this AC to the desired voltage, and then converting it back to DC with precise regulation. This complex yet efficient process ensures that SMPS delivers stable and reliable power in a compact form, crucial for today’s advanced electronic systems.
Advantages of SMPS
Switch Mode Power Supplies (SMPS) offer several distinct advantages over traditional linear power supplies, making them an essential choice in modern electronics.
Firstly, the efficiency of SMPS is notably higher, often exceeding 80%. This high efficiency is primarily due to the reduced energy loss during the power conversion process. In linear power supplies, excess energy is dissipated as heat, which not only wastes energy but also necessitates additional cooling mechanisms. In contrast, the high-frequency switching in SMPS minimizes heat generation. This efficiency translates into lower energy consumption, reduced cooling requirements, and ultimately lower operating costs, which is a significant advantage for both consumer electronics and industrial applications.
Secondly, SMPS units are compact and lightweight, thanks to the smaller size of the transformers and other components used. The high-frequency operation allows for these components to be smaller and lighter without compromising performance. This compactness is particularly beneficial in applications where space is at a premium, such as in portable devices, laptops, and compact desktop computers. The reduced weight also contributes to the portability of electronic devices, making SMPS an ideal choice for modern, space-constrained applications.
Another significant advantage of SMPS is their ability to handle a wide range of input voltages. This capability allows SMPS to function effectively in environments with unstable or varying input voltages, providing consistent output power regardless of fluctuations. This adaptability is crucial in industrial settings and regions with unstable power grids, ensuring that electronic devices receive a stable power supply.
Additionally, SMPS provides superior voltage regulation and lower ripple voltage, which is essential for sensitive electronic components. The stable and clean power output ensures the reliable operation of devices such as medical equipment, telecommunications infrastructure, and precision instrumentation. Furthermore, advanced protection features like over-voltage, over-current, and short-circuit protection enhance the reliability and safety of SMPS, protecting both the power supply and the connected devices from damage.
Applications of SMPS
The versatility and efficiency of SMPS make them suitable for a wide range of applications, spanning various industries and sectors.
In consumer electronics, SMPS is widely used in devices such as televisions, computers, and mobile phone chargers. The efficient power conversion and compact design of SMPS make them ideal for these applications, where reliable power supply and space efficiency are critical. For example, the lightweight and small size of SMPS allow for sleek and portable designs in laptops and smartphones, enhancing the user experience.
In industrial applications, SMPS powers automation systems, control panels, and instrumentation. The high efficiency and robustness of SMPS ensure reliable and stable power to critical processes in manufacturing and industrial environments. This reliability is crucial for maintaining the continuous operation of machinery and reducing downtime, ultimately increasing productivity.
Telecommunications equipment also relies heavily on SMPS for efficient and stable power supply. Network infrastructure, including routers, switches, and data centers, requires a consistent power source to ensure uninterrupted operation. SMPS provides the necessary stability and reliability, which is vital for maintaining seamless communication networks and data transmission.
Medical devices use SMPS to guarantee reliable power delivery, which is essential for accurate diagnostics and patient safety. Equipment such as MRI machines, X-ray systems, and patient monitors depend on the clean and stable power provided by SMPS to function correctly. The advanced protection features of SMPS also safeguard these sensitive devices from power surges and fluctuations.
Renewable energy systems, such as solar inverters, utilize SMPS to convert and regulate the power generated by solar panels. The ability of SMPS to handle varying input voltages and provide efficient power conversion makes them ideal for optimizing energy usage and storage in renewable energy applications. This application highlights the adaptability of SMPS in integrating with modern energy solutions, contributing to sustainable and efficient energy management.
In conclusion, the advantages of SMPS, including high efficiency, compact size, wide input voltage range, superior voltage regulation, and advanced protection features, make them indispensable in a variety of applications. From consumer electronics and industrial automation to telecommunications, medical devices, and renewable energy systems, SMPS plays a crucial role in ensuring reliable and efficient power supply across diverse sectors. Understanding these advantages and applications is essential for engineers looking to design and manage electronic systems that meet the demands of today’s advanced technologies.
Comparison with Linear Power Supplies
When comparing SMPS to linear power supplies, several key differences stand out. Linear power supplies regulate the output voltage by dissipating excess power as heat, which leads to lower efficiency, typically around 50-60%. In contrast, SMPS achieves higher efficiency through high-frequency switching, reducing energy loss and heat production.
Linear power supplies are simpler in design and often provide very low noise and ripple, which can be beneficial in specific applications requiring extremely clean power. However, the bulkiness and heavier weight of linear supplies limit their use in portable and space-constrained applications.
SMPS, on the other hand, offers better efficiency, compactness, and the ability to handle a wide range of input voltages, making them more versatile and suitable for modern electronic devices. The advanced features and protections provided by SMPS further enhance their appeal, despite the slightly higher complexity and noise levels compared to linear power supplies.
Conclusion
In conclusion, Switch Mode Power Supplies (SMPS) play a vital role in modern electronics, providing efficient and reliable power conversion and regulation. Understanding the working principles, advantages, and applications of SMPS is crucial for any engineer involved in designing and managing electronic systems. The high efficiency, compactness, and versatility of SMPS make them an indispensable component in a wide range of applications, from consumer electronics to industrial systems and renewable energy solutions. By leveraging the benefits of SMPS, engineers can ensure that their systems operate efficiently, reliably, and sustainably, meeting the demands of today’s technological advancements.
