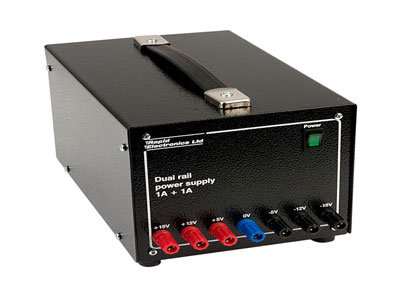

What Is Dual Rail Power Supply?
Key Takeaway
A dual rail power supply is a type of DC power supply that provides both positive and negative voltage outputs. This capability is crucial for many electronic circuits that require dual voltage levels to operate effectively. The dual outputs ensure that devices receive a stable, consistent power supply, which is essential for maintaining the integrity and performance of sensitive electronic components.
The design of a dual rail power supply includes two separate voltage rails: one positive and one negative. This setup helps prevent system damage by balancing the electrical load across the circuit, reducing the likelihood of voltage spikes or uneven power distribution. It is especially beneficial in audio applications, operational amplifiers, and other electronic systems where symmetry between positive and negative power supplies is required for optimal functionality.
Definition and Overview
A dual rail power supply is a type of power supply that provides two separate voltage rails, typically one positive and one negative, to power electronic circuits. This configuration is essential in applications requiring balanced power inputs, such as audio equipment, operational amplifiers, and other sensitive electronic devices. By offering both positive and negative voltage rails relative to a common ground, dual rail power supplies ensure more stable and precise voltage regulation. This stability is crucial for high-performance applications where noise and power fluctuations can significantly impact functionality. Understanding dual rail power supplies is essential for new engineers, as these systems are commonly encountered in various electronic projects and applications, ensuring devices operate efficiently and reliably.
How Dual Rail Power Supplies Work
Dual rail power supplies work by splitting the power supply output into two separate voltage rails, usually labeled as +V and -V. These rails are referenced to a common ground, allowing for symmetrical voltage distribution across the load. The positive rail (+V) supplies positive voltage, while the negative rail (-V) supplies an equivalent negative voltage. This setup helps achieve balanced power delivery, which is critical for minimizing noise and distortion in sensitive electronic circuits.
The dual rail system is often implemented using a center-tapped transformer. This transformer provides both positive and negative voltages relative to the center tap, which acts as the ground. The AC voltage from the mains is applied to the transformer, which then steps down (or up) the voltage to the desired levels. The center tap on the secondary winding of the transformer serves as the ground reference point.
After the transformer, the AC voltage is converted to DC using rectifiers. Rectifiers are electronic components that allow current to flow in one direction only, effectively converting AC to DC. In a dual rail power supply, both the positive and negative sides of the AC waveform are rectified to produce positive and negative DC voltages.
Once rectified, the DC voltage is passed through filters to remove any residual ripple. Ripple is the small, unwanted residual periodic variation of the DC voltage within a power supply, which can introduce noise into electronic circuits. Capacitors are commonly used in the filtering stage to smooth out these fluctuations, providing a cleaner DC output.
Voltage regulators are then used to ensure that the output voltages remain stable and within the desired range. These regulators adjust the voltage to compensate for variations in load and input voltage, maintaining a consistent output. The result is two stable, ripple-free voltage rails that are symmetrical about the ground.
This configuration is particularly beneficial in audio applications, where clean and stable power is necessary to maintain sound quality. Audio circuits are highly sensitive to noise and distortion, and the balanced power delivery from a dual rail power supply helps to minimize these issues. By providing equal and opposite voltages, dual rail systems ensure that audio signals remain clear and accurate, free from power-induced artifacts.
Advantages of Dual Rail Systems
Dual rail power supplies offer several advantages over single rail systems. One of the primary benefits is improved noise rejection. By providing balanced power, dual rail systems help reduce common-mode noise, which is especially important in audio and signal processing applications. This results in clearer and more accurate signal reproduction, as the balanced power delivery minimizes the introduction of noise into the signal path.
Another advantage is the ability to drive differential circuits more effectively. Differential circuits, such as those used in operational amplifiers, require both positive and negative voltage rails to operate correctly. Dual rail power supplies ensure that these circuits receive the necessary voltages, enhancing their performance and reliability. This is crucial for applications where precision and stability are paramount, such as in instrumentation and control systems.
Dual rail systems also offer better voltage regulation and stability. By splitting the power delivery into two rails, the load is distributed more evenly, reducing the strain on any single rail. This balanced load distribution helps maintain consistent voltage levels, even under varying load conditions. Stable voltage is essential for the reliable operation of sensitive electronic circuits, preventing issues like signal distortion and component stress.
In summary, the advantages of dual rail power supplies make them ideal for applications requiring high performance and precision. Their ability to provide balanced, stable power with improved noise rejection and better voltage regulation makes them a preferred choice in many advanced electronic systems.
Applications in Electronics
Dual rail power supplies are widely used in various electronic applications due to their superior performance and reliability. In audio equipment, dual rail systems are essential for providing clean power to amplifiers, mixers, and other audio processing devices. This clean power supply ensures high-fidelity sound reproduction, free from hums and distortions.
In instrumentation and measurement equipment, dual rail power supplies provide the precise and stable voltages required for accurate measurements. Devices such as oscilloscopes, signal generators, and multimeters rely on dual rail systems to maintain their accuracy and reliability.
Operational amplifiers, which are fundamental building blocks in analog electronics, often require dual rail power supplies to function correctly. These amplifiers are used in various applications, including signal conditioning, filtering, and analog computation. The dual rail power supply ensures that the amplifiers receive balanced power, enhancing their performance and reducing noise.
Troubleshooting Dual Rail Power Supplies
Troubleshooting dual rail power supplies involves several steps to ensure that both voltage rails are functioning correctly. The first step is to measure the output voltages of the power supply using a digital multimeter. Ensure that the +V and -V outputs match the expected values and are stable. Any significant deviation from the expected voltages indicates a problem that needs to be addressed.
If the voltages are unstable or significantly off, check the components within the power supply, such as the rectifiers, regulators, and capacitors. Faulty components can cause voltage fluctuations and instability. Inspect for visible signs of damage, such as burnt components or bulging capacitors, and replace any damaged parts.
Another common issue in dual rail power supplies is ground loops, which can introduce noise into the system. Ensure that all ground connections are secure and that there are no unintended ground paths. Using a star grounding configuration, where all ground connections converge at a single point, can help minimize ground loop issues.
Finally, check the power supply’s load. An overloaded power supply can cause voltage drops and instability. Ensure that the connected load does not exceed the power supply’s rated capacity. If necessary, redistribute the load or upgrade to a power supply with a higher capacity.
Conclusion
In conclusion, dual rail power supplies provide numerous benefits for various electronic applications. Their ability to deliver balanced, stable, and noise-free power makes them ideal for sensitive devices like audio equipment, instrumentation, and operational amplifiers. Understanding how dual rail power supplies work and their advantages is essential for engineers working with high-performance and precision electronics. By ensuring proper operation and troubleshooting any issues effectively, engineers can leverage the full potential of dual rail systems to enhance the performance and reliability of their electronic projects. This knowledge not only improves the quality of the designs but also contributes to the advancement of technology in numerous fields.
