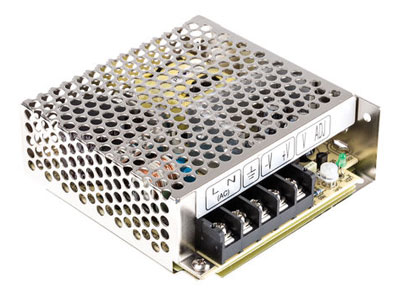

What Is Isolated Power Supply?
Key Takeaway
An isolated power supply is a type of power supply that is electrically separated from other circuits in the system. This isolation helps protect users and downstream components from voltage spikes and surges, ensuring safety and stability.
In an isolated power supply, the input and output are not directly connected. Instead, energy transfers through a transformer or optical coupling. This separation prevents high voltage from reaching sensitive parts of the circuit. Isolated power supplies are commonly used in medical devices, industrial equipment, and sensitive electronic applications. They provide an extra layer of protection, making them essential for systems where safety and reliability are critical.
Definition and Overview
An isolated power supply is a type of power supply where the output is electrically separated from the input. This isolation is achieved using transformers or optocouplers, which create a physical barrier between the input and output circuits. The primary purpose of an isolated power supply is to protect users and sensitive downstream components from high voltage surges and electrical noise. By providing electrical isolation, these power supplies enhance safety and improve the reliability of electronic systems.
Isolated power supplies are commonly used in environments where safety is paramount, such as medical devices, industrial equipment, and sensitive electronic applications. They are designed to prevent ground loops and reduce electromagnetic interference, ensuring clean and stable power delivery to the load.
Working Principle of Isolated Power Supplies
The working principle of an isolated power supply revolves around the use of transformers or optocouplers to achieve electrical separation. In a transformer-based isolated power supply, the input AC voltage is first converted to a different AC voltage level using a transformer. This transformer provides galvanic isolation between the primary and secondary windings, ensuring that there is no direct electrical connection between the input and output.
After the transformation, the AC voltage is rectified and filtered to produce a stable DC output. In some designs, optocouplers are used to provide feedback from the output to the control circuitry, ensuring precise regulation without compromising isolation. The use of optocouplers ensures that the control signals are transferred across the isolation barrier without direct electrical connection, maintaining the integrity of the isolation.
By isolating the output from the input, isolated power supplies protect sensitive components from high voltage spikes and noise, enhancing the overall reliability and safety of the system.
Advantages of Isolation
Isolated power supplies offer several key advantages, making them indispensable in many critical applications. The primary benefit is enhanced safety. By electrically isolating the output from the input, these power supplies protect users and sensitive downstream components from high voltage surges, which could otherwise cause injury or damage.
Another significant advantage is the reduction of ground loops. Ground loops can occur when multiple components in a system share a common ground, leading to unwanted noise and interference. Isolated power supplies eliminate this issue by providing a separate ground reference for the output, ensuring cleaner power delivery and improved signal integrity.
Isolation also improves the noise immunity of electronic systems. Electrical noise from the input side is effectively blocked, preventing it from reaching the sensitive output circuitry. This is particularly important in environments with high electromagnetic interference, such as industrial settings and medical devices, where stable and noise-free power is crucial for accurate operation.
Common Applications
Isolated power supplies are widely used across various industries due to their safety and performance benefits. In medical devices, they ensure patient safety by isolating the device from the mains power, preventing electrical shocks. These power supplies are critical in equipment such as patient monitors, diagnostic machines, and surgical instruments, where reliable and clean power is essential.
In industrial applications, isolated power supplies protect sensitive control systems from electrical noise and surges. They are commonly used in automation systems, motor drives, and instrumentation equipment, ensuring stable and interference-free operation. The isolation helps maintain the integrity of the control signals, leading to more accurate and reliable system performance.
Isolated power supplies are also essential in telecommunications and networking equipment. They provide clean and stable power to sensitive communication devices, reducing the risk of data corruption and ensuring reliable network performance. Additionally, isolated power supplies are used in renewable energy systems, such as solar inverters, where they enhance safety and improve efficiency by providing reliable power conversion and isolation.
Comparison with Non-Isolated Power Supplies
When comparing isolated and non-isolated power supplies, the primary difference lies in the presence or absence of electrical isolation between the input and output. Non-isolated power supplies, also known as buck converters or boost converters, do not provide this isolation. Instead, they directly connect the input and output, which can lead to safety and noise issues.
Non-isolated power supplies are typically simpler and more efficient, making them suitable for applications where isolation is not critical. They are commonly used in consumer electronics, such as smartphones and laptops, where the power requirements are less stringent, and the risk of electrical hazards is lower.
However, the lack of isolation in non-isolated power supplies means they are more susceptible to ground loops and electrical noise. This can lead to interference and degraded performance in sensitive applications. In contrast, isolated power supplies provide superior noise immunity and safety, making them the preferred choice for critical and high-performance applications.
Conclusion
Isolated power supplies offer numerous benefits, including enhanced safety, improved noise immunity, and the elimination of ground loops. These advantages make them essential in a wide range of applications, from medical devices and industrial equipment to telecommunications and renewable energy systems.
Understanding the working principles and advantages of isolated power supplies helps engineers select the right power supply for their specific needs, ensuring reliable and safe operation of electronic systems. By providing clean and stable power, isolated power supplies contribute to the overall performance and longevity of sensitive electronic equipment, making them a valuable component in modern technology.
