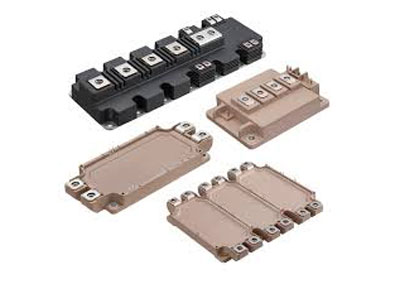

What is meant by IGBT?
Key Takeaway
IGBT stands for Insulated Gate Bipolar Transistor, a hybrid semiconductor device that combines MOSFET’s fast switching with BJT’s high current handling. It operates as a voltage-controlled device, using a small input at the gate to control large currents between the collector and emitter. This design makes IGBTs highly efficient for power-intensive applications like motor drives, inverters, and renewable energy systems.
Key features of IGBT include its ability to handle high voltages, low switching losses, and compatibility with industrial power systems. It is commonly used in electric vehicles, solar inverters, and industrial automation. While IGBTs are less suitable for very high-frequency tasks compared to MOSFETs, their efficiency and versatility make them a preferred choice in modern power electronics.
Introduction to IGBT: A Hybrid Semiconductor Device
The Insulated Gate Bipolar Transistor (IGBT) is a hybrid semiconductor device that combines the best of two worlds: the voltage control of a Metal-Oxide-Semiconductor Field-Effect Transistor (MOSFET) and the current-carrying capabilities of a Bipolar Junction Transistor (BJT). It’s a game-changer in power electronics, offering high efficiency and fast switching capabilities. But what makes the IGBT stand out in the world of semiconductors?
At its core, the IGBT is designed to handle high voltages and currents, making it an ideal choice for industrial and automotive applications. Its ability to switch quickly without significant energy loss is a significant advantage over older technologies like BJTs. Think of it as the perfect bridge between low-power control circuits and high-power loads.
The device operates as a voltage-controlled switch, meaning it requires minimal input current to function. This efficiency makes IGBTs a preferred choice for engineers working on power-intensive systems such as motor drives, renewable energy converters, and high-frequency inverters. Whether you’re designing a solar inverter or an electric vehicle, understanding the IGBT is crucial.
Working Principle of IGBT Explained
The working principle of an IGBT is surprisingly simple yet highly effective. It starts with its hybrid structure, which combines a MOSFET’s insulated gate with the current-carrying capacity of a BJT. This unique combination gives the IGBT its distinctive performance characteristics.
When a voltage is applied to the gate terminal, it creates an electric field that allows current to flow between the collector and emitter. This process is similar to how a MOSFET works. However, once the current starts flowing, the BJT-like structure takes over, allowing the device to handle higher currents with lower resistance.
The IGBT operates in two primary modes: on-state and off-state. In the on-state, it acts as a closed switch, allowing current to pass through with minimal resistance. In the off-state, it blocks the current entirely, even at high voltages. This dual capability makes it ideal for applications requiring precise control over power flow.
One standout feature is its ability to reduce switching losses, a common issue in power systems. While older BJTs suffer from high power losses during transitions, the IGBT’s hybrid design minimizes this issue, making it far more efficient.
Key Features That Differentiate IGBT from MOSFET and BJT
The IGBT’s unique combination of features sets it apart from both MOSFETs and BJTs. Here’s how it compares:
1. Voltage Control vs. Current Control:
Unlike BJTs, which are current-controlled devices, IGBTs are voltage-controlled. This means they require less input power, making them more efficient for large-scale applications.
2. Higher Current Capacity than MOSFETs:
While MOSFETs excel at high-speed switching, their current-handling capacity is limited. IGBTs, on the other hand, can handle much higher currents, making them ideal for power-hungry systems.
3. Switching Speed:
MOSFETs are faster than IGBTs, making them suitable for very high-frequency applications. However, for medium to low-frequency operations, IGBTs strike a perfect balance between speed and efficiency.
4. Low Conduction Losses:
The BJT component of the IGBT ensures lower conduction losses, which is a critical factor in high-power applications like industrial motor drives.
5. Thermal Stability:
IGBTs are more robust under thermal stress compared to MOSFETs and BJTs, ensuring reliability in demanding environments.
These features make the IGBT a versatile choice, bridging the gap between low-power and high-power applications. It’s no wonder that industries ranging from energy to automotive rely heavily on this hybrid device.
Applications of IGBT in Modern Electronics
IGBTs are everywhere in modern electronics, driving innovation and efficiency. Their ability to handle high power and operate efficiently makes them indispensable in several industries.
1. Electric Vehicles (EVs):
In EVs, IGBTs are used in power inverters that convert DC power from the battery into AC power for the motor. They ensure smooth acceleration and braking while maximizing energy efficiency.
2. Renewable Energy Systems:
Solar inverters and wind turbine systems rely on IGBTs to manage the power generated. Their ability to handle high voltages and currents ensures seamless conversion and distribution of energy.
3. Industrial Motor Drives:
IGBTs are the backbone of industrial motor control systems, enabling precise speed and torque adjustments. This is essential in manufacturing, where efficiency and control are critical.
4. HVDC Systems:
High-voltage direct current (HVDC) systems use IGBTs for efficient long-distance power transmission. Their low switching losses and high power-handling capacity make them ideal for this application.
5. Consumer Electronics:
In home appliances like air conditioners and washing machines, IGBTs play a role in power regulation, improving performance and energy efficiency.
These applications highlight the versatility and importance of IGBTs in modern technology. From transportation to energy, their impact is far-reaching and transformative.
Advantages and Limitations of IGBT in Power Systems
While IGBTs offer numerous advantages, they aren’t without limitations. Understanding both sides helps engineers make informed decisions.
Advantages:
1. High Efficiency:
IGBTs minimize power losses, making them ideal for energy-sensitive applications. Their low switching and conduction losses set them apart from other devices.
2. High Voltage and Current Handling:
IGBTs can handle voltages exceeding 1,000V and currents in the hundreds of amps, making them perfect for industrial systems.
3. Simple Gate Drive Circuitry:
Unlike BJTs, which require complex control systems, IGBTs operate with straightforward gate drive circuits, reducing system complexity and cost.
4. Thermal Performance:
IGBTs can withstand high temperatures, ensuring reliable operation in demanding environments.
Limitations:
1. Slower Switching Speeds:
While sufficient for most applications, IGBTs are slower than MOSFETs, limiting their use in ultra-high-frequency systems.
2. Cost:
IGBTs are more expensive than simpler alternatives like BJTs, which can be a drawback for cost-sensitive projects.
3. Latching Issues:
In certain conditions, IGBTs may experience latch-up, a phenomenon where the device cannot turn off. Proper circuit design can mitigate this issue.
Despite these limitations, the advantages of IGBTs far outweigh their drawbacks, solidifying their role as the go-to device for power electronics.
Conclusion
The Insulated Gate Bipolar Transistor (IGBT) is a cornerstone of power electronics, combining the efficiency of MOSFETs with the power-handling capabilities of BJTs. Its versatility makes it indispensable in applications ranging from renewable energy systems to electric vehicles. By offering high efficiency, robust performance, and ease of control, IGBTs empower engineers to design systems that are not only powerful but also energy-efficient. Understanding the IGBT and its unique features is key to unlocking its full potential in modern technology.
