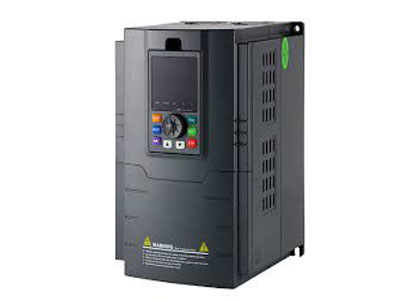

What Size VFD for a 10 HP Motor?

Key Takeaway

To determine the size of a VFD for a 10 HP motor, you need to know the motor’s Full Load Amps (FLA). First, find the FLA of your motor, which is typically 28 amps for a 10 HP motor. Multiply the FLA by two to ensure the VFD can handle the motor’s startup and running conditions.

For a 10 HP motor with a 28 FLA, you need a VFD rated for at least 56 amps. This usually means selecting a VFD around 20 HP. This ensures your VFD can handle the motor efficiently and safely. Keep in mind, VFDs are known to be significant power polluters, especially in small shops or home setups.

Factors Influencing VFD Size Selection

Selecting the appropriate size Variable Frequency Drive (VFD) for a 10 HP motor involves considering several critical factors. One of the primary factors is the motor’s full-load current rating, which indicates the maximum current the motor will draw under full load conditions. Additionally, the type of load driven by the motor, whether it’s constant torque or variable torque, influences the VFD size. Environmental conditions, such as ambient temperature and altitude, can affect VFD performance and may require derating. It’s also essential to consider the application’s duty cycle and any potential for overload conditions. Understanding these factors ensures the VFD can handle the motor’s operational requirements effectively.

Calculation Methods for Determining Size

Determining the correct VFD size for a 10 HP motor involves specific calculations and guidelines. The general rule of thumb is to select a VFD with a current rating equal to or slightly higher than the motor’s full-load amperage (FLA). For a 10 HP motor, which typically has an FLA of around 14 amps at 460V, a VFD with a current rating of 14-16 amps would be appropriate. This ensures the VFD can handle the motor’s operational demands and potential overloads.
A simple formula to calculate the VFD size is: VFD Current Rating=Motor FLA×Service Factortext{VFD Current Rating} = text{Motor FLA} times text{Service Factor}VFD Current Rating=Motor FLA×Service Factor
For example, if the motor has an FLA of 14 amps and a service factor of 1.15, the required VFD current rating would be: 14 amps×1.15=16.1 amps14 text{ amps} times 1.15 = 16.1 text{ amps}14 amps×1.15=16.1 amps
Using this calculation ensures the VFD can handle the motor’s operational needs, including potential overloads. It’s important to account for the specific application requirements, as different applications might demand different VFD characteristics. For instance, motors used in constant torque applications, such as conveyors, may require a different VFD than those used in variable torque applications, like fans and pumps. Understanding these distinctions helps in selecting the right VFD size for optimal performance and longevity.

Common Mistakes to Avoid

When sizing a VFD for a 10 HP motor, avoiding common mistakes is crucial to ensure optimal performance and longevity of the motor and VFD. One frequent error is underestimating the motor’s full-load amperage (FLA), leading to a VFD that cannot handle the motor’s power requirements. Ensuring accurate FLA measurement is essential for proper VFD selection.

Another common mistake is neglecting to consider the load type. Different applications, such as constant torque and variable torque, have distinct requirements. For instance, conveyors (constant torque) demand a VFD that can handle steady, high torque, while fans and pumps (variable torque) might operate efficiently with a different type of VFD. Selecting the wrong type can result in inefficiency and potential damage.

Additionally, failing to account for environmental factors can result in VFD overheating or derating. VFDs need adequate cooling and ventilation to operate correctly, and extreme temperatures or dusty environments can impair their function. It’s also crucial to consider the duty cycle and potential overload conditions. Ignoring these can cause the VFD to trip or fail under heavy load conditions, leading to unexpected downtime and maintenance costs.

Thoroughly understanding and considering these aspects helps prevent these common mistakes, ensuring that the VFD and motor operate efficiently and reliably, reducing maintenance needs, and prolonging the lifespan of both the motor and the VFD.

Tools and Resources for Accurate Selection

Accurately selecting the right VFD size for a 10 HP motor involves leveraging various tools and resources. Manufacturer websites are invaluable as they often provide detailed VFD selection guides and calculators. By inputting specific motor specifications and application details, these online tools can recommend the appropriate VFD model, streamlining the selection process.

In addition to online calculators, specialized software tools offer advanced features for modeling and simulating VFD performance under various conditions. Drive configuration software, for example, can simulate different load scenarios and environmental factors, helping engineers predict how the VFD will perform in real-world applications. This level of detailed analysis ensures that the chosen VFD will meet the specific needs of the motor and its operational environment.

Consulting with VFD suppliers or technical experts can provide additional insights and recommendations based on practical experience and real-world applications. These professionals can offer guidance on the nuances of VFD selection that might not be immediately apparent, such as considerations for harmonic distortion, thermal management, and specific industry standards. Utilizing these tools and resources ensures a more accurate and reliable VFD selection process, tailored to the unique requirements of the motor and its application, ultimately enhancing performance and longevity.

Practical Examples and Case Studies

Real-world examples and case studies underscore the importance of accurate VFD sizing for optimal performance and reliability. Consider a manufacturing facility where a 10 HP motor was used to drive a conveyor belt. The engineers needed to ensure continuous and efficient operation without frequent tripping or overheating. By accurately calculating the motor’s full-load amperage and considering the constant torque load, they selected a VFD with a current rating of 16 amps. This choice allowed the conveyor system to operate reliably under varying load conditions, demonstrating the critical role of precise VFD sizing in maintaining operational efficiency.

Another illustrative case study comes from a water treatment plant. Here, a 10 HP motor was employed to power a pump. Unlike the conveyor system, the pump application exhibited a variable torque nature. This required a different approach to VFD selection. The engineers selected a VFD that could handle variable torque loads effectively, ensuring smooth operation and preventing issues like cavitation or motor stress. This example highlights the necessity of understanding the specific load type and operational characteristics when selecting a VFD. Accurate VFD sizing based on these parameters not only enhances efficiency but also extends the lifespan of both the VFD and the motor, reducing maintenance needs and operational costs. These case studies emphasize that proper VFD sizing leads to efficient, reliable, and trouble-free operation in diverse industrial applications.

Conclusion

In conclusion, selecting the right size VFD for a 10 HP motor involves careful consideration of multiple factors, including full-load amperage, load type, environmental conditions, and duty cycle. Using accurate calculation methods and avoiding common mistakes are crucial steps in this process. Leveraging tools and resources, such as manufacturer guides and software, can aid in making precise selections. Practical examples demonstrate the benefits of proper VFD sizing, ensuring reliable and efficient motor operation. By following these guidelines, engineers can ensure optimal performance and longevity of both the VFD and the motor, enhancing overall system efficiency.
