What Type Of MCB For A House?
Key Takeaway
For a house, the most common type of MCB used is a single-pole MCB rated between 6A to 32A. This MCB protects individual circuits, such as lighting or sockets, from overloads and short circuits. Depending on the appliance or circuit load, you can choose the appropriate amperage.

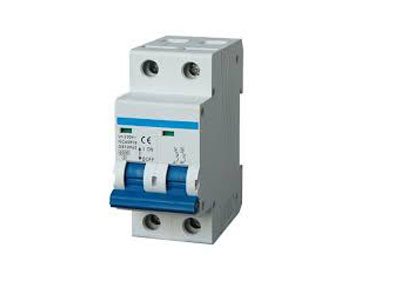

For appliances like water heaters or air conditioners, a double-pole MCB might be necessary. Always consult an electrician to ensure the MCB rating matches your home’s electrical needs for safety and efficiency.
Types of MCBs Available for Homes
When selecting an MCB (Miniature Circuit Breaker) for a home, it’s crucial to understand the different types available to ensure reliable circuit protection. MCBs are designed to protect against overloads and short circuits by cutting off the electricity flow when the current exceeds safe levels.
For residential use, MCBs are classified by their trip curves—Type B, Type C, and Type D. These categories indicate how sensitive they are to sudden increases in current. Type B is suitable for standard home circuits, Type C is ideal for appliances with higher start-up currents like refrigerators, and Type D is used for heavier loads. Choosing the right MCB ensures safe and efficient protection for your home’s electrical system.
B-Type, C-Type, and D-Type MCBs Explained
In household applications, Type B, Type C, and Type D MCBs are the most commonly used. Each type is designed for different electrical loads and is chosen based on the specific needs of the circuit it is protecting.
Type B MCBs are the most commonly used in homes. They trip when the current is 3 to 5 times the rated load, making them ideal for protecting lighting circuits, fans, and general-purpose outlets. They provide reliable protection for circuits that aren’t expected to handle large power surges. This type is perfect for standard home appliances, such as televisions, computers, and other small electronic devices.
Type C MCBs are more suitable for circuits that experience higher inrush currents, such as those with inductive loads like refrigerators, washing machines, and air conditioners. These MCBs trip when the current is 5 to 10 times the rated load, offering better protection for appliances with higher start-up power demands. For example, when a refrigerator compressor starts, it may draw a larger surge of current, and Type C MCBs handle this without unnecessary tripping.
Type D MCBs are generally used in industrial or heavy-duty applications but may occasionally be found in homes with large motors or specialized equipment. These MCBs trip at 10 to 20 times the rated current, making them suitable for protecting circuits with significant power surges. In rare cases, homes with equipment like powerful pumps or small workshops may require Type D MCBs.
Understanding these differences is essential when selecting the right MCB type for specific circuits in your home. Installing the appropriate MCB ensures that your appliances are protected without causing frequent tripping, which can be both inconvenient and unsafe.
Choosing the Right MCB for Home Appliances
When it comes to protecting home appliances, choosing the right MCB ensures that each circuit is adequately safeguarded without experiencing unnecessary trips. Different appliances have varying electrical loads and startup currents, so selecting the right type and size of MCB is key to preventing damage.
For circuits powering lighting systems, TVs, and small electronics, a Type B MCB is usually sufficient. These circuits do not require the higher trip thresholds provided by Type C or D MCBs, as their current usage remains relatively stable. Choosing a Type B MCB for these appliances reduces the chance of nuisance tripping, keeping your household electronics running smoothly.
For larger appliances, such as refrigerators, air conditioners, and washing machines, a Type C MCB is more appropriate. These appliances have higher inrush currents when they start, and a Type B MCB might trip unnecessarily during normal operation. A Type C MCB is better suited for handling these temporary power surges, ensuring that your appliances remain protected while avoiding needless circuit disruptions.
Specialized circuits, such as those for workshops or garages with power tools or motors, may require a Type D MCB. Although less common in homes, this type of MCB is designed to handle significant surges, such as those produced by high-powered tools or industrial-grade equipment. Understanding the requirements of each appliance helps in selecting the right MCB to ensure maximum safety and performance.
Factors to Consider When Selecting a Home MCB
When selecting the right MCB for your home, several factors should be considered to ensure that the circuit and appliances are adequately protected. The first factor is the rated current of the circuit. MCBs come with different current ratings, such as 6A, 10A, 16A, and 32A, depending on the circuit load. Selecting an MCB with the appropriate rating is essential for preventing overloads. For example, lighting circuits typically use 6A or 10A MCBs, while kitchen and air conditioning circuits may require 16A or 32A MCBs.
Another important factor is the nature of the electrical load. Circuits with inductive loads, such as motors, will require a higher-rated MCB, like Type C, to avoid unnecessary tripping during startup. In contrast, resistive loads, such as lighting circuits or general-purpose outlets, are best protected with a Type B MCB.
Finally, consider the safety standards and compliance of the MCB. Always select MCBs that meet the local and international safety standards, such as IEC 60898 or IS/IEC 60947, to ensure reliable protection. Poor-quality or uncertified MCBs may fail to protect your circuit in the event of an electrical fault, potentially leading to costly damage or safety hazards. By considering these factors, you can select the best MCB to provide comprehensive protection for your home.
Benefits of Using Proper MCB in Homes
Using the right type of MCB in your home provides multiple benefits, starting with enhanced safety. MCBs are designed to automatically disconnect the circuit when an overload or short circuit occurs, preventing potential electrical fires or damage to wiring and appliances. The right MCB ensures that these disconnections happen precisely when needed, providing reliable protection.
Another significant benefit is the convenience of MCBs compared to older protective devices like fuses. Unlike fuses, which must be replaced when they blow, MCBs can simply be reset after tripping. This reusability reduces maintenance costs and makes it easier to restore power after a trip, providing hassle-free protection for your electrical circuits.
Additionally, using the proper MCB ensures efficiency. A correctly rated MCB minimizes nuisance tripping, allowing your appliances to operate smoothly without interruptions. Properly functioning MCBs also reduce the risk of costly appliance repairs or replacements, as they protect sensitive devices from dangerous power surges. In short, selecting the right MCB for each circuit helps maintain a safe, efficient, and smoothly running electrical system in your home.
Conclusion
Choosing the right type of MCB for a home is crucial to ensuring the safe and reliable protection of household circuits and appliances. B-Type, C-Type, and D-Type MCBs each serve different purposes, depending on the circuit load and the nature of the electrical appliances. By considering factors like the current rating, load type, and compliance with safety standards, homeowners can select the appropriate MCB to protect their electrical systems from overloads and short circuits. Installing the correct MCB provides peace of mind by enhancing both the safety and efficiency of home electrical systems.
