Gefran Linear Scale | Linear Position Transducer

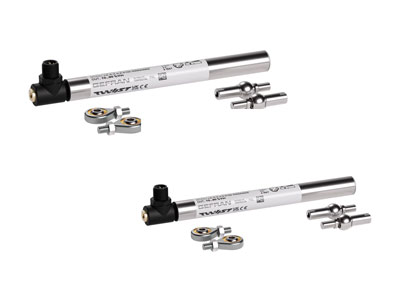

IndMALL Automation introduces the Gefran Linear Scale series, designed for high precision in industrial settings. The LM-C and LM-L models offer a 100 to 900mm stroke range and feature robust, contactless operation with measurements including position, velocity, tilt, acceleration, and temperature. Both models integrate seamlessly into control systems using CANopen and IO-Link protocols, supporting Industry 4.0 capabilities for preventive maintenance. The LS-A model, employing TWIIST technology, provides an analog output suitable for diverse industrial applications, ensuring durability and low maintenance for precise positioning in automation systems.

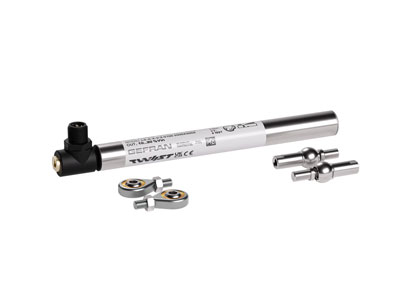

Gefran Linear Scale: LM-C
Stroke Range: 100 to 900mm.
- Measurements: Tracks position, velocity, triaxial tilt, acceleration, vibration, and temperature.
- Contactless Operation: Enhances durability and precision with a fully-sealed design.
- Application Flexibility: Suitable for both industrial and mobile hydraulics.
- Industry 4.0 Compatibility: Facilitates preventive maintenance with multivariable measurements.
- Output: Utilizes CANopen protocol for seamless integration into control systems.

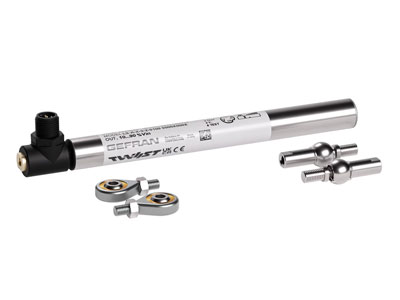

Gefran Linear Position Transducer: LM-L
Stroke Range: 100 to 900mm.
- Measurements: Tracks position, velocity, triaxial tilt, acceleration, vibration, and temperature.
- Contactless Operation: Enhances durability and precision with a fully-sealed design.
- Application Flexibility: Suitable for both industrial and mobile hydraulics.
- Industry 4.0 Compatibility: Facilitates preventive maintenance with multivariable measurements.
- Output: Utilizes IO-Link protocol for seamless integration into control systems.
Linear Scale Gefran: LS-A
Technology: Uses TWIIST for contactless operation, enhancing reliability and longevity.
- Output: Provides analog output for broad industrial application compatibility.
- Durability: Designed for low maintenance and extended service life.
- Applications: Ideal for precise positioning in automation and control systems.
IndMALL Automation introduces the Gefran Linear Scale series, including the LM-C, LM-L, and LS-A models, tailored for precision and reliability in industrial settings:
LM-C and LM-L Models: Both feature a stroke range of 100 to 900mm, with capabilities to measure position, velocity, tilt, acceleration, and temperature. These contactless sensors offer enhanced durability and are ideal for both industrial and mobile hydraulics. LM-C uses CANopen, while LM-L utilizes IO-Link for seamless integration.
LS-A Model: Utilizes TWIIST technology for contactless operation, providing an analog output suitable for various industrial applications. It is designed for low maintenance and longevity, perfect for precise positioning in automation systems.
Frequently Asked Questions
How does linear scale work?
A linear scale operates by translating the physical position of a sliding scale into a digital value. It uses optical, magnetic, or inductive sensors to measure the displacement along a path. This measurement is then converted into an electrical signal that accurately represents the position for display or feedback in control systems.
How to calculate linear scale?
To calculate the linear scale factor, divide the length of one feature on a map or model by the corresponding length on the actual object or area. This ratio represents the scale factor, indicating how much the original has been reduced or enlarged to create the scaled representation.
Why is a linear scale important?
A linear scale is crucial because it allows for accurate measurement of distances on maps or drawings. When a map is photographically enlarged or reduced, the linear scale adjusts in the same ratio, maintaining its accuracy and relevance to the adjusted map size. This consistent scalability ensures that measurements remain precise and reliable across various map scales.
Find the right Gefran Linear Scale for your industry needs at IndMALL.
