Hengstler Encoder: Absolute Rotary Encoders
IndMALL offers Hengstler Encoder, great for precise work in factories. We have Hengstler Absolute Encoders, good for exact measurements, in sizes from 38.1 mm to 70 mm. They work well in hot or cold places and are very reliable. Our Hengstler Incremental Encoders, from 30 mm to 112 mm, count steps accurately and fit many machines. They also work in tough conditions. For special tasks, our Hengstler Rotary Encoders give clear signals and are very strong. All these encoders are made to last long and work hard in different settings.

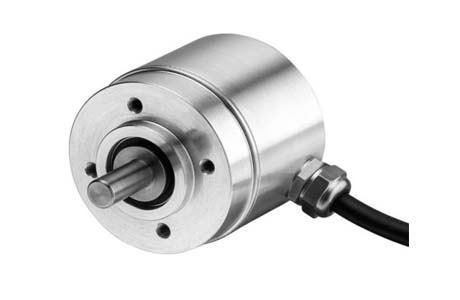

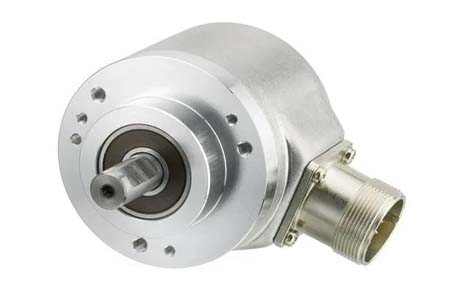

Hengstler Absolute Encoder
- Diameter Range: 38.1 mm to 70 mm.
- Resolution: Single-Turn (ST) from 10 to 22 Bit, Multi-Turn (MT) from 4 to 16 Bit.
- Shaft Options: Solid and Hollow Shaft, sizes ranging from 6 mm to 14 mm.
- Protection Case: IP40 to IP69K, depending on the model.
- Operating Temperature: Ranges from -40°C to +120°C.
- Speed: Up to 10,000 rpm in continuous operation.

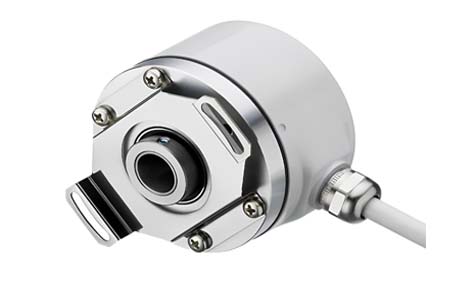

Hengstler Incremental Encoder
- Diameter Range: 30 mm to 112 mm.
- Resolution: Number of Pulses from 1 to 10,000.
- Shaft Options: Solid and Hollow Shaft, sizes ranging from 4 mm to 42 mm.
- Protection Case: IP40 to IP67, depending on the model.
- Interface Options: Push-pull, Differential Line Driver, Open Collector NPN.
- Operating Temperature: Ranges from -40°C to +100°C.
- Speed: Up to 10,000 rpm in continuous operation.

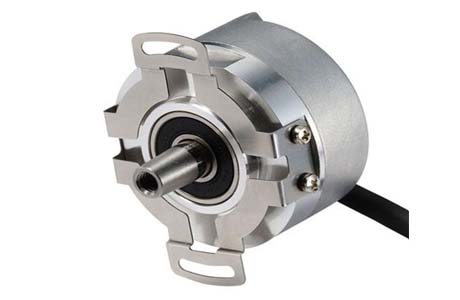

Hengstler Rotary Encoder: Sin/Cos
- Diameter: 53 mm.
- Resolution: Number of Pulses from 1024 to 2048.
- Shaft Options: Hollow Shaft (8 to 12.7 mm), Solid Shaft (10 mm).
- Protection Case: IP40.
- Interface: SinCos 1Vss.
- Special Features: Broad bandwidth of 500 KHz at full signal quality. Interference Immunity is High.
IndMALL Automation brings you the trusted range of Hengstler Encoder, known for their precision and durability. Our selection includes both Absolute and Incremental Encoders, ideal for various industrial applications.
These Hengstler Encoders are available in multiple sizes to suit your specific needs. They ensure accurate performance in diverse temperature conditions and are designed for long-lasting use. The Hengstler AC58 series stands out for its reliability.
Trust IndMALL for straightforward, efficient Hengstler Encoder solutions.
Product List:
Model No |
Image |
Housing diameter |
Shaft |
Protection class |
Connection |
Supply voltage |
|---|---|---|---|---|---|---|

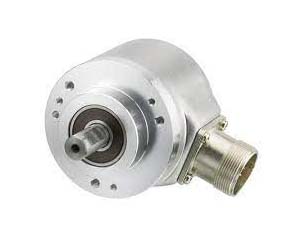

| AC 58 |
|
58 mm | Solid shaft | IP64 or IP67 | Cable, axial or radial M23 connector |
DC 10 – 30 V |

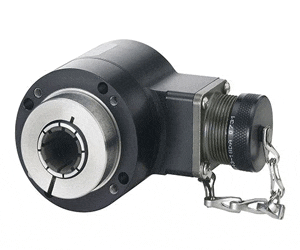

| HSD 25 |
|
58.93 mm | Hubshaft | IP66 or IP67 | MS, radial M12 connector |
DC 5 – 26 V |

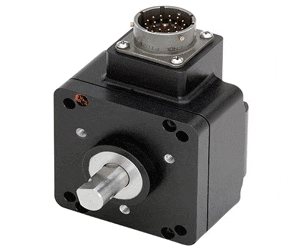

| HD 25 |
|
67.3 mm | Solid shaft | NEMA 4X or IP67 | MS, radial M12 connector |
DC 5 – 26 V |

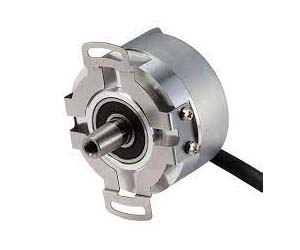

| S 21 |
|
53 mm | – | IP40 | PCB connector and cable | DC 5 V ±10 % |

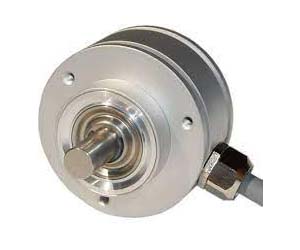

| AR 62/63 |  |
58 mm | Solid shaft | IP67 or IP69K | M12 connector, radial Cable radial |
DC 10 – 30V (+10%) |
Frequently Asked Questions
Which type of coding is used in absolute encoders?
Absolute encoders typically use a code disk with binary code words for each position. This disk features a unique cyclic binary code, known as Gray Code (GC). Gray Code is marked as opaque and transparent segments on concentric tracks, with one track for each resolution bit.
What is an absolute encoder structure?
The absolute value encoder is divided into single-turn absolute value and multi-turn absolute value encoder. The internal structure of the multi-turn absolute encoder can be divided into two parts, single-turn angular position feedback and multi-turn detection.
What are the output types of absolute encoders?
Absolute encoders offer four primary output types: Parallel output, Serial output, Field bus protocols, and Ethernet interfaces. Serial outputs include point-to-point interfaces like SSI and BiSS. Field bus examples are CanOpen and DeviceNet, while Ethernet options provide network connectivity.
Please don’t hesitate to contact us for more details about our Hengstler Encoder
