IFM Pressure Sensor: Digital Pressure Switches

The IFM Pressure Sensor page provides a detailed overview of their extensive product range. With over 610 pressure sensors and vacuum sensors available, IFM caters to a wide array of industrial needs. The sensors cover measuring ranges from -1 to 600 bar and include various process connections such as G 1/4 internal and external threads. Users can choose from output options like switching signals, analogue signals, and IO-Link. These devices are suitable for medium temperatures ranging from -25 to 150 °C.

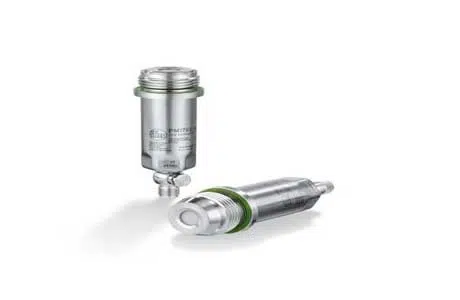

Main Image

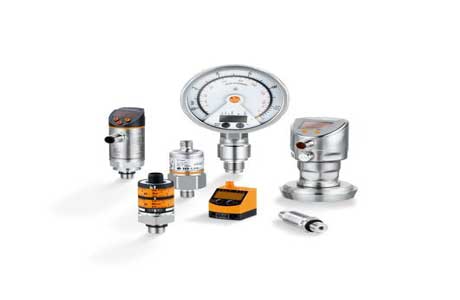

IFM Pressure Sensor: vacuum sensors

IFM Pressure Sensor: vacuum sensors

  • Wide Range of Products: Over 610 pressure sensors and vacuum sensors available.

  • Key Specifications:
  • Measuring ranges from -1 to 600 bar.
  • Various process connections including G 1/4 internal and external threads.
  • Output options include switching signals, analogue signals, and IO-Link.
  • Suitable for medium temperatures between -25 to 150 °C.

IFM Pressure Switch: Intuitive switch point setting

IFM Pressure Switch: Intuitive switch point setting

  • Intuitive Switch Point Setting:

  • Easy switch point adjustment using two scaled rings for precise settings.
  • Mechanical lock to prevent unintentional setting changes.
  • Key Product Specifications:
  • Total of 37 electronic pressure monitors listed.
  • Measuring ranges include 0 to 10 bar, 0 to 100 bar, 0 to 250 bar, and 0 to 400 bar.
  • Common outputs are switching signals.

IFM Differential Pressure Switch: Part seat monitoring

IFM Differential Pressure Switch: Part seat monitoring

  • Key Features:

  • Automatic switch point adjustment.
  • Continuous internal value comparison.
  • LED display for easy monitoring.
  • Applications:
  • Detects filter soiling.
  • Monitors part seating in machine tools.
  • Technical Details:
  • Two configurable switching outputs.
  • Displays input, output, or differential pressure.

IFM Digital Pressure Switch: Flush transmitters for the process technology

IFM Digital Pressure Switch: Flush transmitters for the process technology

  • Product Count: 49 flush-mount transmitter products available.

  • Key Features:
  • Overload-resistant ceramic measuring cell.
  • Resistant to pressure peaks and vacuum.
  • Quick and maintenance-free installation.
  • Scalable analogue output with intuitive handling.
  • Applications:
  • Suitable for hydrostatic level and system pressure measurements.
  • Flush-mount installation ideal for process environments requiring easy cleaning and sterilization.
  • Measuring ranges up to 40 bar.

IFM Electronic Pressure Switch: Transmitters for mobile applications

IFM Electronic Pressure Switch: Transmitters for mobile applications

  • Product Range: 86 different models of pressure transmitters suited for mobile applications.

  • Key Features:
  • Compact and robust design for easy integration in limited spaces.
  • Shock, vibration, and high-pressure resistance.
  • Fast and easy connection with M12, DEUTSCH, or AMP connectors.
  • Technical Performance:
  • High measuring accuracy (less than ± 0.8%).
  • Excellent repeatability (less than ± 0.05%).
  • Protection Standards:
  • IP67 and IP69K protection for durability in harsh environments.

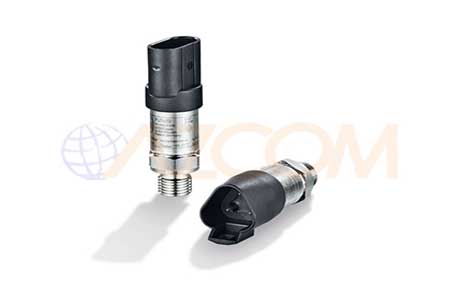

IFM Hydraulic Pressure Switch: Transmitters type PA

IFM Hydraulic Pressure Switch: Transmitters type PA

  • Total Products: 67 PA type transmitters available.

  • Performance:
  • High accuracy of 0.5%.
  • Equipped with either 4…20 mA or 0…10 V analogue outputs.
  • Excellent overload protection and stability.
  • Specifications:
  • Pressure ranges from 0 to 400 bar.
  • Process connections include G 1/4 and 1/4″ NPT threads.
  • Operating temperatures range from -25 to 90 °C, extendable to -40 °C on request.

At IndMALL Automation, we offer a comprehensive selection of IFM Pressure Sensors. Our range includes IFM Pressure Switches and IFM Differential Pressure Switches, designed for precision and durability. Discover our IFM Digital Pressure Switches, ideal for process technology with fast and maintenance-free installation. The IFM Electronic Pressure Switches are perfect for mobile applications, boasting high accuracy and rapid response times. For industrial applications requiring robust performance, explore our IFM Hydraulic Pressure Switches. These products provide reliable measurements across various pressures and are equipped with advanced features for optimal performance in any environment. Visit our website for detailed product specifications and to find the perfect IFM solution for your needs.

Frequently Asked Questions

What is the IFM sensor?

The IFM sensor is an inductive proximity switch designed to detect metals without physical contact. Unlike other sensors, it exclusively detects metals, enhancing its interference immunity. This specificity ensures reliable operation in diverse environments.

What are the two different types of pressure sensors?

Pressure sensors come in two main types: vacuum and sealed. Vacuum sensors measure pressures below atmospheric levels, often using piezo technology. Sealed sensors, on the other hand, take sea level atmospheric pressure as their reference point for measurements.

What is the unit of a pressure sensor?

The standard unit for measuring pressure in pressure sensors is the Pascal. One Pascal is equivalent to one Newton per square meter. This unit quantifies the pressure exerted across a surface area.

How to detect pressure?

To detect pressure, use a strain gauge-based pressure sensor. This mechanical device allows for minute expansions and contractions. These changes occur as pressure is applied or relieved, enabling accurate pressure measurement.
