Inovance VFD: Best AC & Inverter Drive Price

Are you looking for an Inovance VFD or Inovance AC Drive? IndMALL is your trusted source for all Inovance products. We offer the latest Inovance VFD Drive and the popular Inovance AC Drive. Wondering about the Inovance Drive Price? Our range also includes the variable Inovance Inverter, which is ideal for various applications.

Each Inovance Drive in quality and reliability. Whether you’re searching for the Inovance MD310 AC Drive, a specific Inovance VFD, or any other Inovance VFD Drive alternative, IndMALL has you covered. Shop with us for authentic Inovance products and unbeatable service.

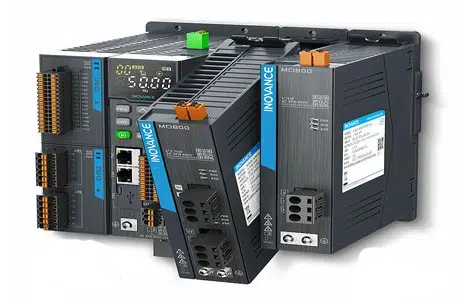

Inovance VFD: MD800 Compact AC MultiDrive

Modular Design: Up to 8 drives per rectifier, 50% smaller footprint.
Efficient Installation: Reduced assembly and wiring time.
Communication: High-speed bus for up to 8 drives, dual RJ45 ports.
Functionality: STO SIL 3 for each drive, suitable for various motor types.
Dual Rating: Heavy duty (150% overload) and normal duty (110% overload).
Temperature Range: -20 to +60°C.

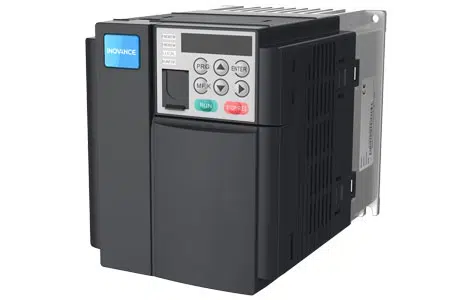

Inovance MD310 AC Drive

Control: Open-loop V/F and sensorless vector control.
Power Range: Three phase, 400 VAC, 0.4-18.5 kW.
Starting Torque: 150% at 0.25 Hz for sensorless vector control.
Features: Automatic torque boost, slip compensation, variable DC-injection braking, built-in dynamic braking unit.
Functionality: Simplified parameter setup, 4-independent S-ramps, flexible programmable I/O connection.
Output Frequency: Up to 500 Hz.

Inovance VFD Drive: MD520

Motor Control: Unified AC asynchronous and PM synchronous motor control.
Power Range: 3 ph 380-480 Vac: 0.4 to 500 kW; 3 ph 200-240 Vac: 0.4 to 75 kW; 1 ph 200-240 Vac: 0.4 to 2.2 kW
Features: Built-in DC reactor (400 V: 18.5 kW and above; 200 V: 11 kW and above), conformal coated PCBs compliant to 3S2 and 3C3 environments.
Efficiency: Complies with efficiency level IE2 as defined in IEC 61800-9-2.
Mounting: Through-hole mounting options (0.4 to 160 kW).

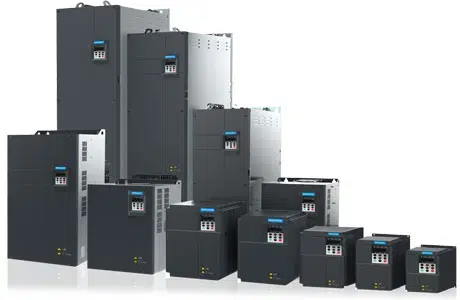

Inovance Drive: MD500 Plus High-Performance

Voltage and Power Range: 3 ph 380-480 Vac: 0.4 to 500 kW; 3 ph 200-240 Vac: 0.4 to 75 kW; 1 ph 200-240 Vac: 0.4 to 2.2 kW
Ambient Temperature: Operates in high temperatures up to 50°C.
Built-in DC Reactor: Included for 400 V (18.5 kW and above) and 200 V (11 kW and above).
PCB Protection: Conformal coated PCBs compliant with 3S2 and 3C3 environments.
Mounting: Through-hole mounting options are available for 0.4 to 160 kW.

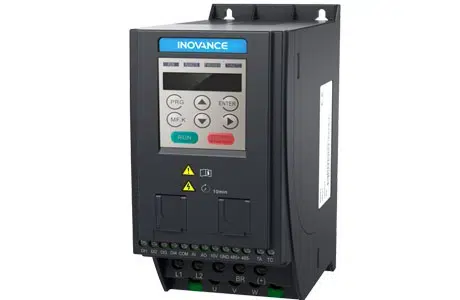

Inovance Inverter: MD200 Open Loop General Purpose

Voltage and Power Range: Single Phase 220 VAC: 0.4-2.2 kW; Three Phase 400 VAC: 0.4-3.7 kW
Control: Open-loop V/F and sensorless vector control.
Starting Torque: 150% at 3 Hz.
Communication: Modbus RTU (standard), CANlink (variant).
Functionality: Simplified parameter setup, 2-independent S-Ramps, flexible programmable I/O connection.
Output Frequency: Up to 500 Hz.

Inovance Variable Frequency Drives: MD810

Control Options: Open & closed loop, suitable for induction and PMS motors.
Power Range: Common power supply unit: 22-355 kW; Drive range: 1.5-160 kW (dual drive unit: 1.5-18.5 kW).
Safety: STO SIL 3 according to EN/IEC 61800-5-2.
Features: Static and dynamic auto-tuning, center winder/unwinder function, wobble function, point to point position control, second PID control loop.
Communication: CANopen, Modbus-RTU, PROFIBUS-DP, CANlink, PROFINET.

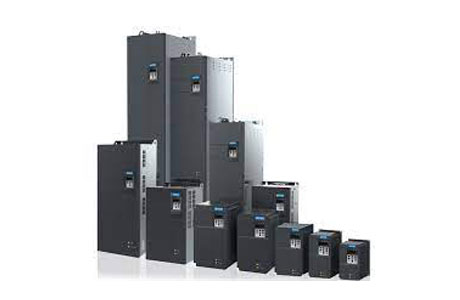

Inovance AC Drive: MD290 General Purpose

Control: Open-loop V/f with slip compensation.
Power Range: 0.4-500 kW (400 VAC), 0.4-75 kW (200 VAC).
Features: Torque boost, slip compensation, DC injection braking, user programmable function.
Communication: Modbus-RTU, CANlink, PROFIBUS-DP, PROFINET, CANopen.
Output Frequency: Up to 500 Hz.

Frequently Asked Questions

What are the Main Components of VFD?

The main components of a Variable Frequency Drive (VFD) include a rectifier, which converts AC to DC power; a filter, which smooths the DC power; an inverter, which converts DC back to AC at the desired frequency; and a control unit, which regulates the overall process. These components work together to control motor speed and torque efficiently.

What is the Function of VFD Drive?

The function of a VFD (Variable Frequency Drive) is to control the speed and torque of electric motors. It does this by varying the frequency and voltage supplied to the motor. This control allows for precise speed regulation, energy efficiency, and reduced mechanical stress on motor systems, leading to extended equipment life and improved process control.

What is the Range of Low Voltage?

The range of low voltage typically spans from 50 volts (V) to 1,000 V for alternating current (AC), and from 120 V to 1,500 V for direct current (DC). This classification is used in electrical engineering and industry to define a voltage level that poses a minimal risk of electric shock.

What type of Drive is AC Drive?

An AC drive, also known as a Variable Frequency Drive (VFD), is an electronic device used to control the speed of an AC motor. It adjusts the frequency and voltage supplied to the motor, enabling precise motor speed regulation. AC drives are widely used in industrial and commercial applications for energy efficiency and improved motor control.

Choose IndMALL for Inovance VFD or Inovance AC Drive and get in touch immediately.
