INVT VFD: AC Variable Frequency Drives

INVT VFD offers a range of low to medium-voltage inverters, providing a variety of both general and specific AC drives. INVT VFD Drives support functional expansion cards and are extensively utilized in the industrial automation field.

IndMALL offers a wide range of INVT AC drives, INVT inverter 11kw, INVT Variable Frequency Drives, INVT Servo Motor, INVT Inverters, variable frequency AC drives for 3-phase motors, Variable Frequency Inverter Drive, and more. IndMALL INVT VFD prices are better than INVT AC Drive distributors and dealers.

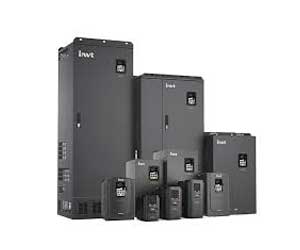

INVT VFD

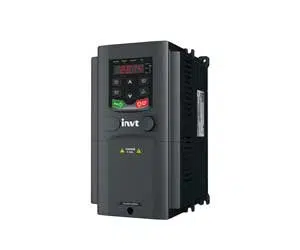

INVT VFD Drive

INVT VFD Drive: GD200A Series

INVT VFD Drive GD200A Series features:

  • Control: VF and Sensorless Vector Control, up to 0.5Hz/150% starting torque.
  • Braking: Built-in unit ≤30kW, optional external ≥37kW.
  • Keypad: External LED for parameter copying, optional LCD.
  • Filters: Standard C3, optional C2.
  • Power Range: 0.75kW to 500kW (Three Phase 400V).

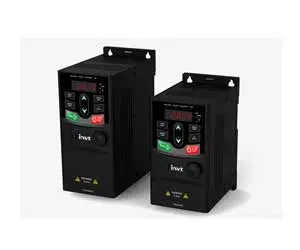

INVT AC Drive

INVT AC Drive: GD20 Series

The INVT GD20 Series VFD features:

  • Control: PG-free vector control for excellent performance.
  • Design: Compact, optimized for space-saving.
  • Functionality: Built-in DC reactors, braking units, and DC bus sharing.
  • Applications: Versatile for various industries like food, plastic, textile, and more.
  • Extras: Simple PLC, multi-speed control, PID, and torque control.

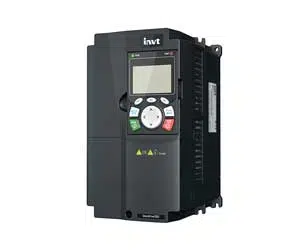

INVT Drives

INVT Drives: GD350 Series

INVT Drives GD350-19 Series for Cranes:

  • Performance: High torque at low frequencies, optimized for crane operations.
  • Control: Advanced algorithms for smooth lifting, anti-sway, and quick stop.
  • Safety: Features like anti-snag, loose rope protection, and STO/SIL2 for secure operations.
  • Flexibility: Supports multiple motors, positioning stop, and master/slave control.
  • Expansion: Accommodates up to three expansion cards.

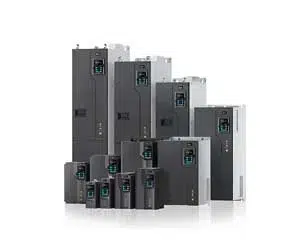

INVT VFD Inverter

INVT VFD Inverter: GD270

INVT VFD Inverter GD270 Series VFD for Fan and Pump:

  • Design: Book-type for easy installation and compact structure.
  • Motor Compatibility: Supports synchronous and asynchronous motors.
  • Application Integration: Integrated functions for fan and pump applications (HVAC).
  • Energy Efficiency: New ECO algorithm for reduced operating costs.
  • Extensibility: Supports Profibus-DP, Profinet, CANopen communications, and I/O expansion.
INVT Inverter

INVT Inverter: GD600 Series

  • Safety: Integrates Safe Torque Off (STO) function.
  • Compatibility: Supports mainstream fieldbus from 1 MB to 100MB.
  • Control: Offers torque control, speed control, and position control.
  • Motor Support: Drives both asynchronous induction motors and permanent-magnet synchronous motors.
  • Performance: Delivers outstanding dynamic response and control precision.

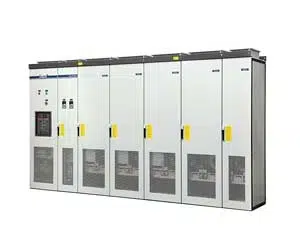

INVT Single Phase VFD

INVT Single Phase VFD: GD800 Series

  • Voltage Range: 380V, 500V, 660V, up to 3MW.
  • Communication: Optical fiber, supports Modbus, Profibus-DP, CANopen, Ethernet.
  • Safety Features: SS1, SLS functions.
  • Energy Efficiency: Four quadrant energy flow, <5% harmonic.
  • Applications: Metallurgical, port, lifting, petroleum, chemical, power, mining, etc.

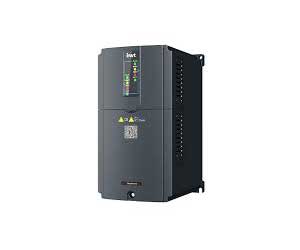

INVT Drive Price

INVT VSD: GD18 Series

  • Control Technology: Utilizes sensorless vector control (SVC) for enhanced performance.
  • Configurations: Supports various hardware setups.
  • Software Functions: Offers powerful and versatile software capabilities.
  • Design: Enhanced structural design for improved usability and reliability.

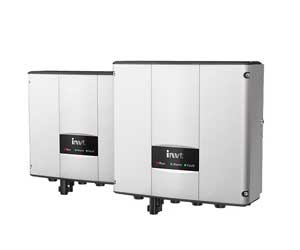

<br /> INVT Solar VFD

INVT Solar VFD: BPD Series

BPD Series Solar Pump:

  • Voltage Support: Compatible with single-phase & 3-phase 220V pumps.
  • Efficiency: Achieves 99% MPPT efficiency with advanced control algorithms.
  • Cost-Effective: Reduces PV panel costs (up to 8 pieces) with a built-in Boost Module.
  • Remote Control: Supports GPRS module for app-based remote management.
  • Design: IP65 protection class, a fanless system for easy installation and maintenance-free operation.

Explore the wide range of INVT VFDS at IndMALL Automation, where performance meets affordability. Our collection includes the INVT solar VFD series, available in various capacities like 3 HP, 7.5 HP, 10 HP, 15 HP, 20 HP, and 25 HP, catering to diverse industrial automation needs. Each model, from the compact 5 HP to the robust 7.5hp, is priced competitively, as detailed in our INVT drive price list.

IndMALL Automation ensures you have access to the entire spectrum of INVT Drives, including single-phase options, all characterized by their efficiency and reliability. For those looking for detailed insights, the INVT VFD manual PDF and INVT solar VFD manual provide comprehensive guidance on parameters and usage. Whether you’re looking for an INVT 3hp VFD or a more powerful variant, our price list offers the best deals.

Frequently Asked Questions

What is the use of INVT VFD?

INVT Variable Frequency Drives, or VFDs, are used to control motor speed and torque. They adjust motor speed by varying the frequency and voltage of the power supplied. This results in significant energy savings and improved process control.

They’re widely used in industries like HVAC, pumping, and manufacturing. INVT AC Drives can enhance productivity, reduce energy consumption, and prolong motor life.

They’re recognized for their efficiency, reliability, and advanced control features.

What is the frequency range of VFD?

The frequency range of a Variable Frequency Drive (VFD) is typically 0 to 400 Hz. This broad range allows full control of motor speed. However, the actual frequency range may vary based on the specific VFD model.

Always consult the manufacturer’s guidelines for exact specifications. The chosen frequency depends on the requirements of the motor and the application.

It’s crucial to optimize frequency settings for efficient and safe motor operation.

What is the formula for VFD?

The basic formula for a Variable Frequency Drive (VFD) relates frequency, motor speed, and number of poles. It’s expressed as Speed (RPM) = (120 * Frequency) / Number of Poles. This formula helps calculate the motor speed at a given frequency.

By manipulating the frequency, the VFD can control motor speed. Always ensure the chosen frequency is within the motor’s and VFD’s safe operating range.

Use this formula as a basic guide to understanding VFD operation.

Trust IndMALL Automation for your INVT VFD needs, where quality meets cost-effectiveness.
