Leuze 2D-Code Identification: Code Readers

Leuze 2D Code Identification primarily involves square-shaped data cell groups, often seen as matrices, with a unique orientation symbol. This symbol helps recognize the code type. The Leuze 2D Code Identification system is perfect for added tasks like parts tracking, where codes are directly attached to the workpiece.


Leuze 2D Code Identification

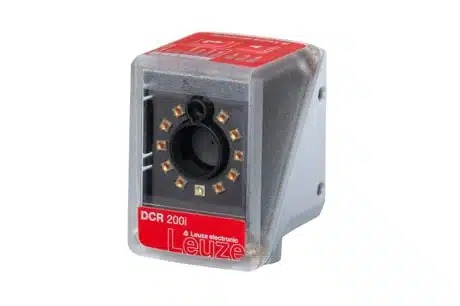

Leuze 2D-Code Identification: DCR 200i Series

An intuitive setup wizard facilitates quick commissioning and minimizes mistakes. Built in a stainless steel variant with IP67/69K protection. Settings configurable through a dedicated smartphone application. Incorporates built-in interfaces such as Ethernet, Profinet, RS 232 / 422. Enhanced read capabilities due to potent LED lighting. Three distinct optic variants support reading distances ranging roughly from 40 – 360 mm. Thanks to its modular structure, the DCR 200i offers flexible adjustments to meet specific needs.

leuze 2D code readers LSIS 422i

Leuze Stationary 2D-Code Readers: LSIS 422i Series

A refined camera resolution of 752×480 pixels ensures quick detection, including for codes with low contrast. High-resolution CMOS code reader capable of reading both 1D and 2D codes. Supports external trigger functionality. Capability to read multiple codes. Supports reading from any direction. Features motor-driven focus fine-tuning. Built with in-built lighting suitable for industrial applications. Indicator present for successful read processes.

leuze 2D code readers LSIS 220

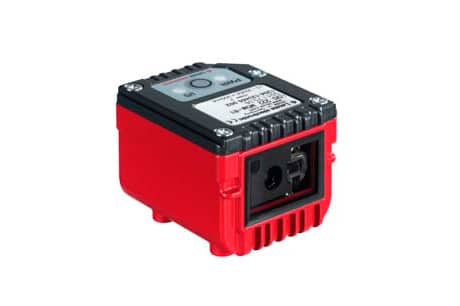

Leuze Stationary 2D-Code Readers: LSIS 220 Series

Enhanced optics provide an extended reading field and consistent focus even to peripheral areas, with an optimized resolution of 844×640 pixels ensuring quick code scanning. Capable of detecting 2D codes, stacked codes, and barcodes. Available with RS 232 or USB connectivity. Includes a switching input (trigger). Manual activation and setup via a trigger button. Designed without any moving mechanical components, its sturdy metal enclosure with a glass front and an IP 65 protection rating makes it ideal for industrial environments. Exceptionally compact design, suitable even for installations in challenging conditions.

leuze 2D code readers DCR 50 DCR 55

Leuze Stationary 2D-Code Readers: DCR 50 / DCR 55 Series

Compact design. Capable of reading all standard codes. Options for RS 232 or USB connectivity. Easily configured using the Sensor Studio PC software.



leuze mobile 2D code readers

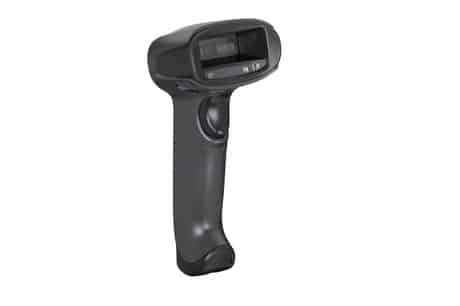

Leuze Mobile 2D-Code Readers: General Applications

Diverse optics configurations for peak reading distance. Choose between wired or Bluetooth options for RS 232 or USB connectivity. Equipment designed for all-purpose application. Protection level up to IP 41 standard. Functional in temperatures from 0°C to +50°C.



leuze mobile 2D code readers industrial

Leuze Mobile 2D-Code Readers: Industrial Applications

Diverse optics variations ensure the best reading distance. Opt for wired or Bluetooth connectivity for RS 232 or USB interfaces. Suitable for durable or harsh application zones. Offers defense up to IP 67 standards. Operational from -30°C to +50°C temperature span.

leuze mobile 2D code reader dpm

Leuze Mobile 2D-Code Readers: Directly Marked Codes (DPM)

Various lighting and optics choices guarantee optimal reading results. Select from wired connections or Bluetooth for RS 232 or USB connectivity. Tailored solutions for demanding or rigorous settings. Provides shielding up to an IP 65 standard. Functional in temperature ranges of -30°C to +50°C.

Frequently Asked Questions

What is 2D barcode used for?

A 2D barcode is a special type of code.

What It Looks Like: It’s a square with many small dots or patterns. It’s not just lines like regular barcodes.

What It Does: 2D barcodes store more information than regular ones. They’re used on tickets, labels, and in stores.

In short, 2D barcodes help quickly share lots of data. They’re common in many everyday places.

Can 2D barcode scanner scan qr code?

Yes, a 2D barcode scanner can read QR codes.

What’s a QR Code?: It’s a type of 2D barcode. You often see them on ads or tickets.

Using a Scanner: When you use a 2D barcode scanner, it can read the QR code easily.

So, if you have a 2D scanner, you’re good to scan QR codes!

What is a 2d barcode?

A 2D barcode is a special kind of code.

How It Looks: It’s often square and has patterns, not just lines. It’s like a tiny puzzle picture.

Its Job: It stores information. When scanned, it shares that data.

In short, a 2D barcode is a quick way to save and read lots of info.
