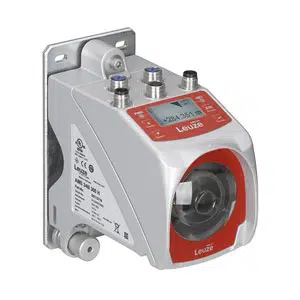

AMS 107i 120 BTA H: 50144690 - Leuze A-coded Encoder Distance Sensor
Technical Specifications of Leuze AMS 107i 120 BTA H 50144690:
| Spec | Value |
|---|---|
| Dimension (W x H x L) | 70 mm x 139 mm x 118 mm |
| Measurement range | 100 ... 120,000 mm |
| Supply voltage UB | 18 ... 30 V, DC |
| Thread Size | M12 |
Leuze A-coded Encoder Distance Sensor AMS 107i 120 BTA H, 50144690 Technical Specifications:
| Specification | Value |
|---|---|
| Dimension (W x H x L) | 70 mm x 139 mm x 118 mm |
| Measurement range | 100 ... 120,000 mm |
| Supply voltage UB | 18 ... 30 V, DC |
| Con 1: Type of Connection | Connector |
| Con 1: Designation on device | PWR |
| Con 1: Thread size | M12 |
| Con 1: Material | Metal |
| Con 1: No. of pins | 5 -pin |
| Con 2: Function | Data interface |
| Con 2: Type of connection | Connector |
| Con 2: Designation on device | X1 SSI |
| Con 2: Thread size | M12 |
| Con 2: Type | Male |
| Con 2: No. of pins | 5 -pin |
| Con2: Encoding | B-coded |
| Con 3: Function | Service interface |
| Con 3: Type of connection | Connector |
| Con 3: Designation on device | XF0 SERVICE |
| Con 3: Thread size | M13 |
| Con 3: Type | Female |
| Con 3: No. of pins | 4 -pin |
| Con3: Encoding | D-coded |
| Housing material | Metal |
| Degree of protection | IP 65 |
Obtain a Quote for Leuze A-coded Encoder Distance Sensor, AMS 107i 120 BTA H, 50144690 at economical prices. Specifications Overview for AMS 107i 120 BTA H reveals IP 65, Metal, Data interface, 5 -pin, Metal, M12, PWR & Connector. It also includes 18 ... 30 V, DC, 100 ... 120,000 mm & 70 mm x 139 mm x 118 mm. Take the First Step with a Quote for your requirement of Leuze A-coded Encoder Distance Sensor. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
