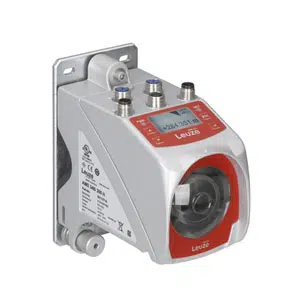

Leuze AMS 307i 40 | 50137593
Technical Specifications of Leuze AMS 307i 40 50137593:
| Spec | Value |
|---|---|
| Dimension (W x H x L) | 84 mm x 166.5 mm x 159 mm |
| Measurement range | 200 ... 40,000 mm |
| Supply voltage UB | 18 ... 30 V, DC |
| Thread Size | M12 |
Leuze AMS 307i M12 Thread Distance Sensor AMS 307i 40, 50137593 Technical Specifications:
| Specification | Value |
|---|---|
| Dimension (W x H x L) | 84 mm x 166.5 mm x 159 mm |
| Measurement range | 200 ... 40,000 mm |
| Supply voltage UB | 18 ... 30 V, DC |
| Con 1: Type of Connection | Connector |
| Con 1: Designation on device | PWR |
| Con 1: Thread size | M12 |
| Con 1: Material | Metal |
| Con 1: No. of pins | 5 -pin |
| Con 2: Function | Data interface |
| Con 2: Type of connection | Connector |
| Con 2: Designation on device | SSI |
| Con 2: Thread size | M12 |
| Con 2: Type | Male |
| Con 2: No. of pins | 5 -pin |
| Con2: Encoding | B-coded |
| Con 3: Function | Service interface |
| Con 3: Type of connection | Connector |
| Con 3: Designation on device | SERVICE |
| Con 3: Thread size | M12 |
| Con 3: Type | Female |
| Con 3: No. of pins | 5 -pin |
| Con3: Encoding | A-coded |
| Housing material | Metal |
| Degree of protection | IP 65 |
Reach Us by Email for Leuze AMS 307i M12 Thread Distance Sensor AMS 307i 40 50137593 at Discounted Rates. Key Technical Features of AMS 307i 40 are Light source Laser, Red, Measurement range 200 ... 40,000 mm, Supply voltage UB 18 ... 30 V, DC. Additionally, it provides Connector m12, Type of connection, Housing material Metal, Degree of protection IP 65, Ambient temperature, operation -5 ... 50 °C. Navigate Your Needs with a Quote for your requirement of AMS 307i 40. Our pricing and support are unrivaled, especially when compared to other Competitors.
