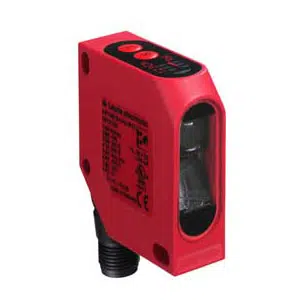

Leuze CRT 448.L3/444-M12 | 50121292
Technical Specifications of Leuze CRT 448.L3/444-M12 50121292:
| Spec | Value |
|---|---|
| Design | Cubic |
| Dimensions | 17 mm x 50 mm x 50 mm |
| Application | Detection of three colors |
| Light Source | LED, White |
Leuze LED White Light Source Color Sensor CRT 448.L3/444-M12, 50121292 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Thread Size | M12 |
| Dimension | 17 mm x 50 mm x 50 mm |
| Application | Detection of three colors |
| Operating range | 18 ... 22 mm |
| Light source | LED, White |
| Light spot size [at sensor distance] | 1 mm x 5 mm |
| Light spot orientation | Vertical |
| Type of light spot geometry | Rectangular |
| Supply voltage UB | 12 ... 28 V, DC |
| Number of teach inputs | 1 Piece(s) |
| Number of digital switching outputs | 3 Piece(s) |
| Switching output 1 | Transistor, PNP |
| Switching output 2 | Transistor, PNP |
| Switching output 3 | Transistor, PNP |
| Switching frequency | 500 Hz |
| Type of connection | Connector |
| No. of Pin | 8 -pin |
| Housing material | Plastic |
| Plastic housing | ABS |
| Ambient temperature, operation | -10 ... 55 °C |
| Degree of protection | IP 67 |
Mail Us for your needs inLeuze LED White Light Source Color Sensor CRT 448.L3/444-M12 50121292 with budget friendly prices. The Main Technical Parameters of CRT 448.L3/444-M12 are Cubic Design, 17 mm x 50 mm x 50 mm Dimensions, 18 ... 22 mm Operating Range, LED, White Light Source, 1 mm x 5 mm Light Spot Size, Transistor, PNP Switching Output 500 Hz Switching Frequency, Connector, M12 Thread size, Plastic Housing material, IP 67 degree of protection. Customize Your Experience with a Quote for your requirement of Leuze LED White Light Source Color Sensor.
