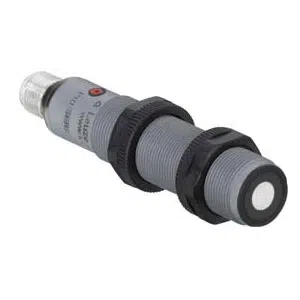

Leuze DMU318-1600.3/2VK-M12 | 50136091
Technical Specifications of Leuze DMU318-1600.3/2VK-M12 50136091:
Spec | Value |
---|---|
Dimension (Ø x L) | 18 mm x 91.6 mm |
Thread Size | M18 x 1 mm |
Measurement Range | 150 ... 1,600 mm |
Switching Output | Transistor, NPN |
Leuze 8° Opening angle Ultrasonic Sensor DMU318-1600.3/2VK-M12, 50136091 Technical Specifications:
Specification | Value |
---|---|
Dimension (Ø x L) | 18 mm x 91.6 mm |
Thread size | M18 x 1 mm |
Measurement range | 150 ... 1,600 mm |
Supply voltage UB | 10 ... 30 V, DC |
Analog output 1 | Voltage |
Switching ouput 1 | Transistor, NPN |
Switching principle | NO (normally open) |
Switching frequency | 2 Hz |
Response time | 250 ms |
Con 1: Function | Signal IN Signal OUT Voltage supply |
Con 1: Type of connection | Connector |
Con 1: Thread size | M12 |
Con 1: Type | Male |
Con 1: Material | Plastic |
Con 1: No. of pins | 5 -pin |
Con1: Encoding | A-coded |
Housing material | Plastic |
Degree of protection | IP 67 |
Please speak to our Technical Engineer for DMU318-1600.3/2VK-M12 50136091 at attractive prices. Technical Specs Summary of DMU318-1600.3/2VK-M12 are Voltage, Analog output 1 10 ... 30 V, DC, 18 mm x 91.6 mm Dimension, Transistor, NPN, NO (normally open), 2 Hz, 250 ms, M18 x 1 mm Thread size, Plastic, Plastic Housing material, IP 67 degree of protection. Match Your Needs with a Quote for your requirement of Leuze 8° Opening angle Ultrasonic Sensor. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
