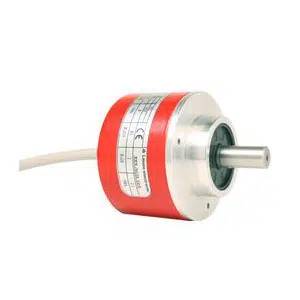

EI 1058-S06x10Y-1024T-M23A: 50139575 - Leuze TTL Interface Rotary Encoder
Technical Specifications of Leuze EI 1058-S06x10Y-1024T-M23A 50139575:
| Spec | Value |
|---|---|
| Type | Incremental rotary encoder |
| Max Operating Speed | 6,000 r/min |
| Resolution | 1,024 p/r |
| Type of Connection | M23 Connector |
Leuze TTL Interface Rotary Encoder EI 1058-S06x10Y-1024T-M23A, 50139575 Technical Specifications:
| Specification | Value |
|---|---|
| Type | Incremental rotary encoder |
| Max. operating speed | 6,000 r/min |
| Resolution | 1,024 p/r |
| Supply Voltage UB | 5 ... 28 V, DC |
| Open-circuit current | 0 ... 150 mA |
| Switching frequency | 300,000 Hz |
| Interface type | TTL |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M23 Connector |
| Connector | Axial |
| Number of conductors or pins | 12 -pin |
| Housing material | Metal; Aluminum |
| Flange type | Synchro flange |
| Design | Shaft |
| Dimension (Ø x L) | 6 mm |
| Dimension (Ø x L) | 10 mm |
| Start-up torque | 0.5 N·m |
| Shaft load - axial | 60 N |
| Shaft load - radial | 120 N |
| Ambient temperature | -40 ... 70 °C |
| Degree of protection | IP 65 |
IndMALL provides Leuze TTL Interface Rotary Encoder EI 1058-S06x10Y-1024T-M23A part no: 50139575 at the lowest pricing. In-depth Technical Analysis of EI 1058-S06x10Y-1024T-M23A, 50139575 include Incremental rotary encoder, 6,000 r/min operating speed, 1,024 p/r, 5 ... 28 V, DC power supply, 0 ... 150 mA current, 300,000 Hz frequency, TTL Interface type, Signal OUT Voltage supply, M23 Connector, Axial connector, 12 -pin, Synchro flange type, Shaft design, 6 mm dimension, 10 mm dimension, 60 N shaft load axial, 120 N shaft load radial, IP 65 degree of protection. Capture the Best Deal with a Quote for your requirement of Leuze TTL Interface Rotary Encoder. Our promise: More affordable pricing and more personalized support than other Dealers.
