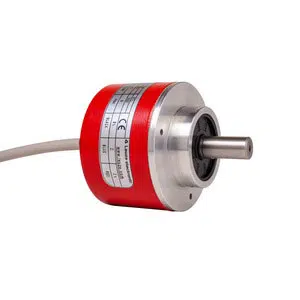

EI 1058-S08x20C-2000H-020A: 50144338 - Leuze 2,000 p/r Incremental Sensor
Technical Specifications of Leuze EI 1058-S08x20C-2000H-020A 50144338:
| Spec | Value |
|---|---|
| Type | Incremental rotary encoder |
| Max Operating Speed | 6,000 r/min |
| Resolution | 2,000 p/r |
| Type of Connection | PVC, 2,000 mm Cable Length |
Leuze 2,000 p/r Incremental Sensor EI 1058-S08x20C-2000H-020A, 50144338 Technical Specifications:
| Specification | Value |
|---|---|
| Type | Incremental rotary encoder |
| Max. operating speed | 6,000 r/min |
| Resolution | 2,000 p/r |
| Supply Voltage UB | 5 ... 28 V, DC |
| Open-circuit current | 0 ... 150 mA |
| Switching frequency | 300,000 Hz |
| Interface type | HTL |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | PVC, 2,000 mm Cable Length |
| Connector | Axial |
| Number of conductors or pins | 8 -wire |
| Housing material | Metal; Aluminum |
| Flange type | Clamping flange |
| Design | Shaft |
| Dimension (Ø x L) | 8 mm |
| Dimension (Ø x L) | 20 mm |
| Start-up torque | 0.5 N·m |
| Shaft load - axial | 60 N |
| Shaft load - radial | 120 N |
| Ambient temperature | -40 ... 70 °C |
| Degree of protection | IP 65 |
Give Us a Call for Leuze 2,000 p/r Incremental Sensor EI 1058-S08x20C-2000H-020A part no: 50144338 with budget-friendly prices. Technical Attributes are EI 1058-S08x20C-2000H-020A, 50144338 include Incremental rotary encoder, 6,000 r/min operating speed, 2,000 p/r, 5 ... 28 V, DC power supply, 0 ... 150 mA current, 300,000 Hz frequency, HTL Interface type, Signal OUT Voltage supply, PVC, 2,000 mm Cable Length, Axial connector, 8 -wire, Clamping flange type, Shaft design, 8 mm dimension, 20 mm dimension, 60 N shaft load axial, 120 N shaft load radial, IP 65 degree of protection. It's Time to get a Quote for your requirement of Leuze 2,000 p/r Incremental Sensor. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
