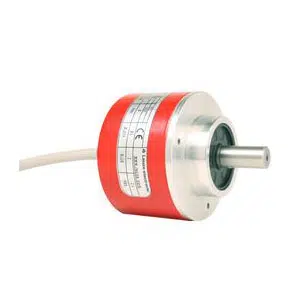

EI 1058-S08x20C-2500T-M23A: 50139585 - Leuze 150 mA Current Rotary Encoder
Technical Specifications of Leuze EI 1058-S08x20C-2500T-M23A 50139585:
Spec | Value |
---|---|
Type | Incremental rotary encoder |
Max Operating Speed | 6,000 r/min |
Resolution | 2,500 p/r |
Type of Connection | M23 Connector |
Leuze 150 mA Current Rotary Encoder EI 1058-S08x20C-2500T-M23A, 50139585 Technical Specifications:
Specification | Value |
---|---|
Type | Incremental rotary encoder |
Max. operating speed | 6,000 r/min |
Resolution | 2,500 p/r |
Supply Voltage UB | 5 ... 28 V, DC |
Open-circuit current | 0 ... 150 mA |
Switching frequency | 300,000 Hz |
Interface type | TTL |
Connection Function | Signal OUT Voltage supply |
Type of Connection | M23 Connector |
Connector | Axial |
Number of conductors or pins | 12 -pin |
Housing material | Metal; Aluminum |
Flange type | Clamping flange |
Design | Shaft |
Dimension (Ø x L) | 8 mm |
Dimension (Ø x L) | 20 mm |
Start-up torque | 0.5 N·m |
Shaft load - axial | 60 N |
Shaft load - radial | 120 N |
Ambient temperature | -40 ... 70 °C |
Degree of protection | IP 65 |
IndMALL Offers Leuze 150 mA Current Rotary Encoder EI 1058-S08x20C-2500T-M23A part no: 50139585 at the lowest pricing. Technical Specs Summary of EI 1058-S08x20C-2500T-M23A, 50139585 includes Incremental rotary encoder, 6,000 r/min operating speed, 2,500 p/r, 5 ... 28 V, DC power supply, 0 ... 150 mA current, 300,000 Hz frequency, TTL Interface type, Signal OUT Voltage supply, M23 Connector, Axial connector, 12 -pin, Clamping flange type, Shaft design, 8 mm dimension, 20 mm dimension, 60 N shaft load axial, 120 N shaft load radial, IP 65 degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze 150 mA Current Rotary Encoder. We're committed to offering more favorable pricing and more responsive support than other Traders.
