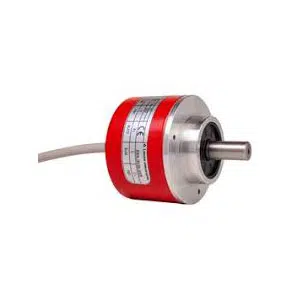

EI 1058-S10x20C-0360H-020R: 50140922 - Leuze HTL Interface Rotary Encoder
Technical Specifications of Leuze EI 1058-S10x20C-0360H-020R 50140922:
| Spec | Value |
|---|---|
| Type | Incremental rotary encoder |
| Max Operating Speed | 6,000 r/min |
| Resolution | 360 p/r |
| Type of Connection | PVC, 2,000 mm Cable Length |
Leuze HTL Interface Rotary Encoder EI 1058-S10x20C-0360H-020R, 50140922 Technical Specifications:
| Specification | Value |
|---|---|
| Type | Incremental rotary encoder |
| Max. operating speed | 6,000 r/min |
| Resolution | 360 p/r |
| Supply Voltage UB | 5 ... 28 V, DC |
| Open-circuit current | 0 ... 150 mA |
| Switching frequency | 300,000 Hz |
| Interface type | HTL |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | PVC, 2,000 mm Cable Length |
| Connector | Radial |
| Number of conductors or pins | 8 -wire |
| Housing material | Metal; Aluminum |
| Flange type | Clamping flange |
| Design | Shaft |
| Dimension (Ø x L) | 10 mm |
| Dimension (Ø x L) | 20 mm |
| Start-up torque | 0.5 N·m |
| Shaft load - axial | 60 N |
| Shaft load - radial | 120 N |
| Ambient temperature | -40 ... 70 °C |
| Degree of protection | IP 65 |
Mail Us for Leuze HTL Interface Rotary Encoder EI 1058-S10x20C-0360H-020R part no: 50140922 at the lowest pricing. Technical Specs Summary of EI 1058-S10x20C-0360H-020R, 50140922 are Incremental rotary encoder, 6,000 r/min operating speed, 360 p/r, 5 ... 28 V, DC power supply, 0 ... 150 mA current, 300,000 Hz frequency, HTL Interface type, Signal OUT Voltage supply, PVC, 2,000 mm Cable Length, Radial connector, 8 -wire, Clamping flange type, Shaft design, 10 mm dimension, 20 mm dimension, 60 N shaft load axial, 120 N shaft load radial, IP 65 degree of protection. Navigate Your Needs with a Quote for your requirement of Leuze HTL Interface Rotary Encoder. We excel in offering more cost-effective and supportive solutions than other Competitors.
