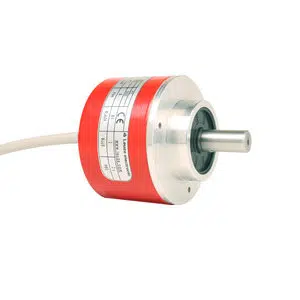

EI 1058-S10x20C-2500H-M23R: 50144333 - Leuze HTL Interface Incremental Sensor
Technical Specifications of Leuze EI 1058-S10x20C-2500H-M23R 50144333:
| Spec | Value |
|---|---|
| Type | Incremental rotary encoder |
| Max Operating Speed | 6,000 r/min |
| Resolution | 2,500 p/r |
| Type of Connection | M23 Connector |
Leuze HTL Interface Incremental Sensor EI 1058-S10x20C-2500H-M23R, 50144333 Technical Specifications:
| Specification | Value |
|---|---|
| Type | Incremental rotary encoder |
| Max. operating speed | 6,000 r/min |
| Resolution | 2,500 p/r |
| Supply Voltage UB | 5 ... 28 V, DC |
| Open-circuit current | 0 ... 150 mA |
| Switching frequency | 300,000 Hz |
| Interface type | HTL |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M23 Connector |
| Connector | Radial |
| Number of conductors or pins | 12 -pin |
| Housing material | Metal; Aluminum |
| Flange type | Clamping flange |
| Design | Shaft |
| Dimension (Ø x L) | 10 mm |
| Dimension (Ø x L) | 20 mm |
| Start-up torque | 0.5 N·m |
| Shaft load - axial | 60 N |
| Shaft load - radial | 120 N |
| Ambient temperature | -40 ... 70 °C |
| Degree of protection | IP 65 |
Obtain a Quote for Leuze HTL Interface Incremental Sensor EI 1058-S10x20C-2500H-M23R part no: 50144333 with exclusive offers. Core System Specifications of EI 1058-S10x20C-2500H-M23R, 50144333 feature Incremental rotary encoder, 6,000 r/min operating speed, 2,500 p/r, 5 ... 28 V, DC power supply, 0 ... 150 mA current, 300,000 Hz frequency, HTL Interface type, Signal OUT Voltage supply, M23 Connector, Radial connector, 12 -pin, Clamping flange type, Shaft design, 10 mm dimension, 20 mm dimension, 60 N shaft load axial, 120 N shaft load radial, IP 65 degree of protection. Initiate Your Journey with a Quote for your requirement of Leuze HTL Interface Incremental Sensor. Trust in our ability to provide more advantageous pricing and dedicated support beyond other Suppliers & Traders.
