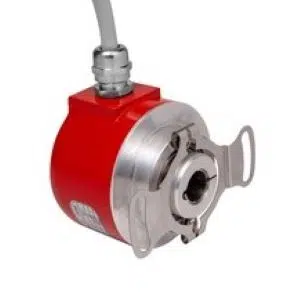

EI 1058-T10S-3600H-050R: 50144349 - Leuze 3,600 p/r Incremental Sensor
Technical Specifications of Leuze EI 1058-T10S-3600H-050R 50144349:
| Spec | Value |
|---|---|
| Type | Incremental rotary encoder |
| Max Operating Speed | 6,000 r/min |
| Resolution | 3,600 p/r |
| Type of Connection | PVC, 5,000 mm Cable Length |
Leuze 3,600 p/r Incremental Sensor EI 1058-T10S-3600H-050R, 50144349 Technical Specifications:
| Specification | Value |
|---|---|
| Type | Incremental rotary encoder |
| Max. operating speed | 6,000 r/min |
| Resolution | 3,600 p/r |
| Supply Voltage UB | 5 ... 28 V, DC |
| Open-circuit current | 0 ... 150 mA |
| Switching frequency | 300,000 Hz |
| Interface type | HTL |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | PVC, 5,000 mm Cable Length |
| Connector | Radial |
| Number of conductors or pins | 8 -wire |
| Housing material | Metal; Aluminum |
| Flange type | Stator coupling |
| Design | Hollow shaft |
| Dimension (Ø x L) | 10 mm |
| Dimension (Ø x L) | - |
| Start-up torque | 0.5 N·m |
| Shaft load - axial | 60 N |
| Shaft load - radial | 120 N |
| Ambient temperature | -40 ... 70 °C |
| Degree of protection | IP 65 |
IndMALL Automation Dealing offers Leuze 3,600 p/r Incremental Sensor EI 1058-T10S-3600H-050R part no: 50144349 at unbeatable prices. The Main Technical Parameters of EI 1058-T10S-3600H-050R, 50144349 feature Incremental rotary encoder, 6,000 r/min operating speed, 3,600 p/r, 5 ... 28 V, DC power supply, 0 ... 150 mA current, 300,000 Hz frequency, HTL Interface type, Signal OUT Voltage supply , PVC, 5,000 mm Cable Length, Radial connector, 8 -wire, Stator coupling flange type, Hollow shaft design, 10 mm dimension, 60 N shaft load axial, 120 N shaft load radial, IP 65 degree of protection. Take the First Step with a Quote for your requirement of Leuze 3,600 p/r Incremental Sensor. Choose us for unparalleled pricing and support over other Dealers & Distributors.
