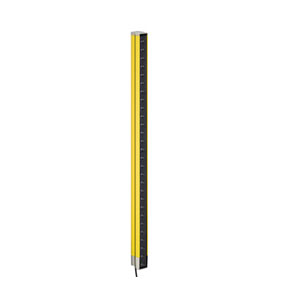

ELC110R30-600: 72001306 - Leuze 600mm Height Safety Light Curtain
Technical Specifications of Leuze 600mm Height Safety Light Curtain ELC110R30-600 72001306:
| Spec | Value |
|---|---|
| Device type | Receiver |
| Application | Hand protection |
| Type of connection | PUR Cable 300 mm with M12 connector 4 -pin |
| Dimension (W x H x L) | 34.7 mm x 615 mm x 39.3 mm |
Leuze 600mm Height Safety Light Curtain ELC110R30-600, 72001306 Technical Specifications:
| Specification | Value |
|---|---|
| Series | ELC100 |
| Device type | Receiver |
| Contains | 2x sliding block |
| Application | Hand protection |
| Functions | Automatic start/restart |
| Resolution | 30 mm |
| Protective field height | 600 mm |
| Synchronization | Optical between transmitter and receiver |
| Protective circuit | Overvoltage protection, Short circuit protected |
| Supply voltage UB | 24 V, DC, -20 ... 20 % |
| Current consumption, max. | 100 mA |
| Number of safety-related switching outputs (OSSDs) | 2 Piece(s) |
| Safety related switching output Type | Safety-related switching output OSSD |
| Switching voltage high, min. | 18 V |
| Switching voltage low, max. | 2.5 V |
| Switching voltage, typ. | 22.5 V |
| Voltage type | DC |
| Current load, max. | 50 mA |
| Load inductivity | 500,000 µH |
| Load capacity | 0.03 µF |
| Residual current, max. | 0.5 mA |
| Voltage drop | 1.5 V |
| O/P 1: Switching Principle | 24 V switching |
| O/P 1: Switching Output | Transistor, PNP |
| O/P 2: Switching Principle | 24 V switching |
| O/P 2: Switching Output | Transistor, PNP |
| Response time | 5.6 ms |
| Restart delay time | 100 ms |
| Number of connections | 1 Piece(s) |
| Function | Machine interface |
| Type of connection | PUR Cable 300 mm with M12 connector 4 -pin |
| Type | Male |
| Dimension (W x H x L) | 34.7 mm x 615 mm x 39.3 mm |
| Housing material | Metal: Aluminum |
| Lens cover material | Plastic / PMMA |
| Material of end caps | Diecast zinc |
| Housing color | Yellow, RAL 1021 |
| Type of fastening | Groove mounting, Mounting brackets |
| Type of display | LED |
| Number of LEDs | 6 Piece(s) |
| Degree of protection | IP 65 |
| Protection class | III |
| Ambient temperature, operation | 0 ... 50 °C |
| Ambient temperature, storage | -30 ... 70 °C |
| Relative humidity (non-condensing) | 0 ... 95 % |
| Net weight | 930 g |
Talk to Our Engineer for Leuze 600mm Height Safety Light Curtain ELC110R30-600 part no: 72001306 with exclusive offers. Core System Specifications of ELC110R30-600, 72001306 are Hand protection, Receiver device, 30 mm resolution, 600 mm protective height, 24 V, DC, -20 ... 20 % supply voltage, 100 mA current consumption, 2 Piece(s) outputs, 1.24 V switching, Transistor, PNP output, 2.24 V switching, Transistor, PNP output, PUR Cable 300 mm with M12 connector 4 -pin, Male, 34.7 mm x 615 mm x 39.3 mm dimension, LED display. Don't Miss Out on a Quote for your requirement of Leuze 600mm Height Safety Light Curtain. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
