Leuze Label Gap Sensor: GS 61 Series

• Performance: High-speed detection with a maximum switching frequency of 10kHz.
• Light Source: Utilizes 940nm infrared light for reliable sensing.
• Design: Compact with a mouth width of 3mm and depth of 40mm.
• Connectivity: Options include M8 connectors (4-pin or 3-pin) or a 2m cable.

Leuze Gap Sensor: GK 14 Series

• Performance: switching frequency of 5000Hz and a response time of 0.1ms.
• Design: Mouth width of 0.9mm ± 0.1mm and depth of 85mm.
• Connectivity: 1 PNP and 1 NPN transistor output, direction-dependent and reversible.
• Power Requirements: 10 – 30VDC operating voltage, residual ripple ≤ 15% of UB.

Leuze Label Sensor: GSU 14 Series

• Performance: switching frequency of 2,000 Hz.
• Design: Compact, with a mouth width of 4mm and depth of 80mm.
• Connectivity: IO-Link interface and two digital switching outputs.
• Power Requirements: Operating voltage of 18 – 30 VDC
• Environmental Suitability: Operates in temperatures from 0 to 60 °C.

Leuze Fork Sensors: IGSU 14 Series

• Performance: High-speed detection with a typical response time of ≤ 200μs and repeatability of ± 0.2mm.
• Design: Compact with a mouth width of 4mm and depth of 68mm.
• Connectivity: Equipped with push-pull switching outputs.
• Power Requirements: Operating voltage of 12 – 30VDC
• Load Capacity: Supports capacitive loads up to 0.5μF.

Leuze Label Sensors: GSX 14 Series

• Performance: switching frequencies of 2,000 Hz (ultrasonics) and 9061 Hz (optical).
• Light Source: Infrared LED with a wavelength of 850 nm.
• Design: Fork design with a mouth depth of 80mm.
• Connectivity: IO-Link interface, supports easyTeach function and ALC tracking.

Leuze Gap Sensors: GS 04 Series

• Performance: switching frequency of 1500Hz and response time of 0.33ms.
• Light Source: LED with 640nm red light.
• Design: Various mouth widths ranging from 20mm to 220mm.
• Connectivity: Offers PNP/NPN transistor output with reversible light/dark switching.

Leuze Fork Sensor: GS 754B Series

• Light Source: 850 nm wavelength for accurate measurements.
• Design: Compact, with a 27 mm mouth width.
• Connectivity: Durable metal connector.
• Power Requirements: 18 – 30 VDC operating voltage, 15% residual ripple.
• Environmental Resilience: Operates in temperatures from -20°C to 50°C, IP 67 rated.

Product List:

Model No	Image	Series	Light source	Voltage type	Switching voltage	No. of pins

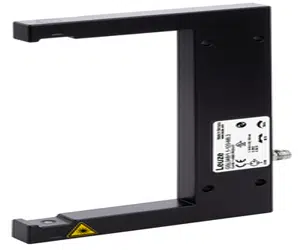

GSL04B-1.1-120-M8.3		04B	Laser, Red	DC	high: ≥(UB-2V) low: ≤ 2 V	3 -pin

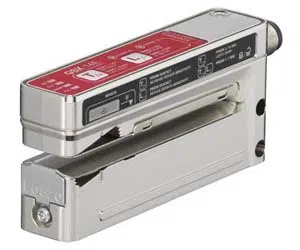

GSX14E-LGT-3-M12		14	LED, Infrared	DC	high: ≥9V low: ≤ 2 V	5 -pin
GS04B/N.1-120-M8.3		04B	LED, Red	DC	high: ≥(UB-2V) low: ≤ 2 V	3 -pin
GS 61/6,200-S12		61	LED, Infrared	DC	high: ≥8V low: ≤ 2 V	5 -pin
GS 754B/D3-98-S12		754	LED, Infrared	–	–	5 -pin

We have a variety of Leuze Label Gap Sensors in our collection, each made for different power needs and uses. Here are a few examples:

• Our range includes the GSL04B-1.1-120-M8.3 model, featuring a red laser light source, DC voltage type, and a 3-pin connection. It operates with a switching voltage of high ≥(UB-2V) and low ≤ 2 V.
• The GSX14E-LGT-3-M12 model utilizes an infrared LED light source, also with a DC voltage type and a 5-pin connection, offering a switching voltage of high ≥9V and low ≤ 2 V.
• Another notable model is the GS04B/N.1-120-M8.3, similar to the GSL04B with a red LED light source, DC voltage, and a 3-pin connector, maintaining the same switching voltage range.
• The GS 61/6,200-S12 model stands out with its infrared LED light source, DC voltage type, and a 5-pin connection, operating at a switching voltage of high ≥8V and low ≤ 2 V.
• The GS 754B/D3-98-S12 model, part of the 754 series, features an infrared LED light source and a 5-pin connection, designed for specialized applications

Each model is made to meet different requirements, offering a wide range of options for various industrial tasks
