Leuze FRKR 95/44-350 L | 50034514 Get the Best Price
Leuze FRKR 95/44-350 L | 50034514
Technical Specifications of Leuze FRKR 95/44-350 L 50034514:
| Spec | Value |
|---|---|
| Design | Cubic |
| Operating Principle | Diffuse reflection principle with background suppression |
| Sensing Distance | 0.005 ... 0.35 m |
| Light Source | LED, Red |

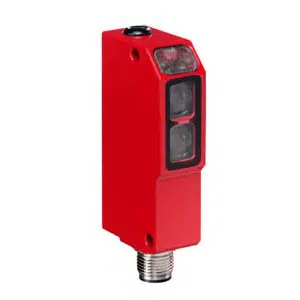

Leuze Zinc Metal housing diffuse sensor FRKR 95/44-350 L - 50034514 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Special version | - |
| Sensing Distance | 0.005 ... 0.35 m |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 660 nm |
| Type of light spot geometry | Rectangular |
| Supply voltage UB | 10 ... 30 V, DC |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching |
| Switching Output 2 | Transistor, PNP |
| Switching principle | Dark switching |
| Switching frequency | 1,000 Hz |
| Response time | 0.5 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M12 |
| Type | Male |
| Material | Stainless steel |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 17 mm x 66 mm x 35 mm |
| Housing material | Metal |
| Lens cover material | Glass |
| Housing color | Red |
| Type of display | LED |
| Ambient temperature, operation | -25 ... 60 °C |
| Ambient temperature, storage | -40 ... 70 °C |
| Degree of protection | IP 67 |
Mail us for Leuze Zinc Metal housing diffuse sensor FRKR 95/44-350 L part no: 50034514 with budget-friendly prices. Technical Details of FRKR 95/44-350 L, 50034514 are Cubic, Design Diffuse reflection principle with background suppression, 17 mm x 66 mm x 35 mm Dimension, LED, Infrared Light source, Transistor, PNP Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC Supply voltage UB, 0.005 ... 0.35 m Sensing Distance, Connector M12, - Housing material, IP 67 degree of protection. Elevate Your Project with a Quote for your requirement of Leuze Zinc Metal housing diffuse sensor. Rest assured, our pricing and support outshine other Suppliers.
