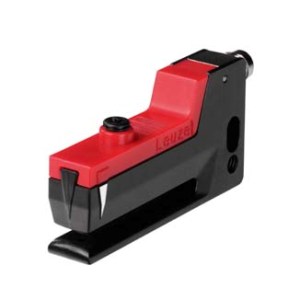

Leuze Optical Fork Sensor
GS 61/6.3,200-S12
Brand Leuze Electronics
Model Number GS 61/6.3,200-S12
Part Number 50112424
Sensor type Forked Photoelectric Sensor
Leuze Label Sensor GS 61/6.3,200-S12 Technical Features:
IndMALL offers Leuze GS 61/6.3,200-S12 is an optical forked sensor with part number 50112424, belonging to the GS 61 series of fork-type sensors. It is specially designed to detect non-transparent labels with a label width of 2 mm and a label gap of 2 mm. This sensor comes with a cable length of 200 mm and has an M12 connector 5 pin. To operate, the sensor requires a supply voltage ranging between 10 and 30 V DC.
| Part Number | 50112424 |
| Series | 61 |
| Principle of Physics | Optical |
| Application | Detection of non-transparent labels |
| Label width, min. | 2 mm |
| Label gap, min. | 2 mm |
| Medium | Not transparent |
| Special version | Teach input |
| Light Source | LED, Infrared |
| Wavelength | 940 nm |
| Supply voltage UB | 10 … 30 V DC |
| Open-circuit current | 0 … 30 mA |
| Number of teach inputs | 1 Piece(s |
| Type | Teach input |
| Voltage type | DC |
| Switching voltage | high: ≥8V low: ≤ 2 V |
| Number of digital switching outputs | 1 Piece(s) |
| Type | Digital switching output |
| Voltage type | DC |
| Switching current, max. | 100 mA |
| Switching voltage | high: ≥(UB-2V) low: ≤ 2 V |
| Switching element | Transistor, Push-pull |
| Switching principle | Switching signal in label gap |
| Switching frequency | 10,000 Hz |
| Response time | 0.05 ms |
| Readiness delay | 300 ms |
| Max. conveyor speed during teach-in | 20 m/min |
| Number of connections | 1 Piece(s) |
| Function | Signal IN Signal OUT Voltage supply |
| Type of connection | Cable with connector |
| Cable length | 200 mm |
| Thread size | M12 |
| Type | Male |
| Material | Metal |
| No. of pins | 5 -pin |
| Encoding | A-coded |
| Design | Fork |
| Mouth width | 3 mm |
| Mouth depth | 41 mm |
| Dimension (W x H x L) | 11 mm x 30 mm x 60 mm |
| Housing material | Plastic |
| Plastic housing | PC |
| Lens cover material | Plastic/PC |
| Net weight | 70 g |
| Housing color | Black, RAL 9005 Red, RAL 3000 |
| Type of fastening | Mounting thread Through-hole mounting Via the optional mounting device |
| Type of display | LED |
| Number of LEDs | 3 Piece(s) |
| Operational controls | Teach button |
| Ambient temperature, operation | -20 … 60 °C |
| Ambient temperature, storage | -30 … 70 °C |
| Degree of protection | IP 65 |
| Certifications | c UL US |
The Leuze GS 61/6.3,200-S12 is an optical forked sensor designed for detecting non-transparent labels with a label width of 2mm and a label gap of 2mm. It has a part number of 50112424 and belongs to the GS 61 series of fork-type sensors.
The sensor comes with a 200mm cable and has an M12 connector with 5 pins. It requires a supply voltage ranging from 10 to 30 V DC to operate. The sensor is equipped with an LED light source with a wavelength of 940nm.
One of the unique features of this sensor is the teach input function, which allows for the easy adjustment of the sensor to different label sizes and gaps. It has one piece of connection for signal IN, signal OUT, and voltage supply.
The Leuze GS 61/6.3 sensor has a switching element that is a transistor push-pull and a switching principle of switching signal in the label gap. It has a response time of 0.05ms and a readiness delay of 300ms. The maximum conveyor speed during teach-in is 20m/min.
The sensor has a plastic housing made of PC material with a lens cover material of plastic/PC. It is available in black (RAL 9005) and red (RAL 3000) colors and can be mounted through the mounting thread or through-hole mounting via the optional mounting device.
The Leuze GS 61/6.3,200-S12 sensor has an IP 65 degree of protection, which means that it is protected from dust and water splashes. It has certifications of c UL US.
