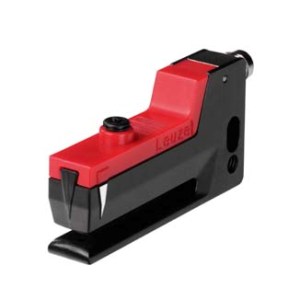

Leuze Optical Fork Sensor
GS 61/6-S8
Brand Leuze Electronics
Model Number GS 61/6-S8
Part Number 50110110
Sensor type Fork Photoelectric Sensor
Leuze Fork Photo Sensor GS 61/6-S8 Technical Features:
The Leuze GS 61/6-S8 sensor with part number 50110110 is an optical forked sensor that belongs to the GS 61 series. This sensor is specifically designed for the detection of non-transparent labels with a label width of 2 mm and a label gap of 2 mm. The sensor is equipped with M8 male connectors 4-pin and it requires a supply voltage ranging from 10 to 30 V DC.
| Part Number | 50110110 |
| Series | 61 |
| Principle of Physics | Optical |
| Application | Detection of non-transparent labels |
| Label width, min. | 2 mm |
| Label gap, min. | 2 mm |
| Medium | Not transparent |
| Light Source | LED, Infrared |
| Wavelength | 940 nm |
| Supply voltage UB | 10 … 30 V DC |
| Open-circuit current | 0 … 30 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Type | Digital switching output |
| Voltage type | DC |
| Switching current, max. | 100 mA |
| Switching voltage | high: ≥(UB-2V) low: ≤ 2 V |
| Switching element | Transistor, Push-pull |
| Switching principle | Switching signal in label gap |
| Switching frequency | 10,000 Hz |
| Response time | 0.05 ms |
| Readiness delay | 300 ms |
| Max. conveyor speed during teach-in | 20 m/min |
| Number of connections | 1 Piece(s) |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M8 |
| Type | Male |
| Material | Metal |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Plug outlet | Horizontal (parallel to belt movement) |
| Design | Fork |
| Mouth width | 3 mm |
| Mouth depth | 41 mm |
| Dimension (W x H x L) | 11 mm x 30 mm x 60 mm |
| Housing material | Plastic |
| Plastic housing | PC |
| Lens cover material | Plastic/PC |
| Net weight | 20 g |
| Housing color | Black, RAL 9005 Red, RAL 3000 |
| Type of fastening | Mounting thread Through-hole mounting Via the optional mounting device |
| Type of display | LED |
| Number of LEDs | 2 Piece(s) |
| Operational controls | Multiturn potentiometer |
| Ambient temperature, operation | -20 … 60 °C |
| Ambient temperature, storage | -30 … 70 °C |
| Degree of protection | IP 65 |
| Certifications | c UL US |
IndMALL provides a Leuze Label Gap Sensor GS 61/6-S8 with part number 50110110 is an optical forked sensor that belongs to the GS 61 series. It is an excellent solution for detecting non-transparent labels with a label width of 2 mm and a label gap of 2 mm. The sensor uses an optical principle of physics and is equipped with an LED infrared light source with a wavelength of 940 nm, providing high-accuracy detection in various lighting conditions.
Leuze GS 61/6D-S8 sensor’s M8 male connectors with 4 pins make it easy to install and connect to other systems. The sensor’s transistor push-pull digital switching output provides a fast and reliable response with a maximum switching current of 100 mA and a switching voltage of high: ≥(UB-2V), low: ≤ 2 V.
The GS 61/6-S8 sensor mouth width and depth of 3 mm and 41 mm, respectively, make it easy to integrate into existing systems. The sensor’s dimensions of 11 mm x 30 mm x 60 mm and a net weight of 20 g make it highly compact and suitable for use in space-constrained areas. The sensor’s multiturn potentiometer and LED displays make it easy to set up and monitor, enabling users to quickly and easily adjust the sensor’s settings.
Leuze optical sensor GS 61/6-S8 is plastic PC housing and lens cover makes it durable and resistant to harsh environmental conditions. The sensor’s IP65 degree of protection ensures protection against dust and water ingress. It has an operational temperature range of -20 to 60 °C and a storage temperature range of -30 to 70 °C. The sensor has a degree of protection of IP 65 and is c UL US certified.
