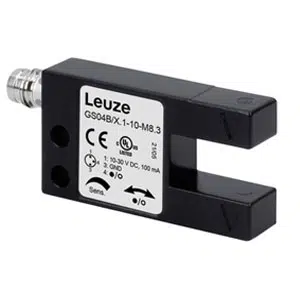

GS04B/N.1-10-M8.3: 50146174 - Leuze 10000Hz Frequency Fork Sensor
Technical Specifications of Leuze GS04B/N.1-10-M8.3 50146174:
| Spec | Value |
|---|---|
| Design | Fork |
| Dimension (W x H x L) | 10 mm x 25 mm x 45 mm |
| Light source | LED, Infrared |
| Output Type | Digital switching output |
Leuze 10000Hz Frequency Fork Sensor GS04B/N.1-10-M8.3, 50146174 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 04B |
| Application | Detection of small parts |
| MTTF | 734.68 years |
| Light source | LED, Infrared |
| Wavelength | 880 nm |
| Laser class | - |
| Transmitted-signal shape | Pulsed |
| Minimum object diameter | 0.2 mm |
| Power Supply | 10 ... 30 V, DC |
| Open-circuit current | 0 ... 30 mA |
| Switching hysteresis | 100 µm |
| Number of digital switching outputs | 1 Piece(s) |
| Output Type | Digital switching output |
| Switching current, max. | 100 mA |
| Switching voltage | high: ≥(UB-2V) low: ≤ 2 V |
| Switching element | Transistor, NPN |
| Switching principle | Light/dark switchable |
| Switching frequency | 10,000 Hz |
| Response time | 0.05 ms |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M8 Connector, 3 -pin |
| Design | Fork |
| Mouth width | 10 mm |
| Mouth depth | 17 mm |
| Dimension (W x H x L) | 10 mm x 25 mm x 45 mm |
| Housing material | Metal; Diecast zinc |
| Lens cover material | Plastic |
| Housing color | Black, RAL 9005 |
| Type of fastening | Through-hole mounting |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | -25 ... 60 °C |
| Degree of protection | IP 67 |
| Net weight | 20 g |
Call us for Leuze 10000Hz Frequency Fork Sensor GS04B/N.1-10-M8.3 part no: 50146174 at the lowest pricing. In-depth Technical Analysis of GS04B/N.1-10-M8.3, 50146174 feature 04B series, LED, Infrared Light Source, 880 nm Wavelength, 0.2 mm minimum object dimeter, 10 ... 30 V, DC power supply, 100 µm switching hysteresis, 100 mA switching current , Transistor, NPN switching element, Light/dark switchable output, 10,000 Hz frequency, M8 Connector, 3 -pin connection, Fork design, 10 mm mouth width, 17 mm mouth depth, 10 mm x 25 mm x 45 mm dimensions, 1 Piece(s) LEDs, Black, RAL 9005 color, IP 67 degree of protection. Capture the Best Deal with a Quote for your requirement of Leuze 10000Hz Frequency Fork Sensor. Our promise: More affordable pricing and more personalized support than other Dealers.
