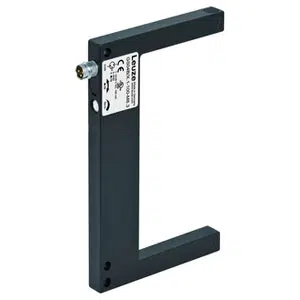

GS04B/N.1-100-M8.3: 50146183 - Leuze NPN Fork Photoelctric Sensor
Technical Specifications of Leuze GS04B/N.1-100-M8.3 50146183:
| Spec | Value |
|---|---|
| Design | Fork |
| Dimension (W x H x L) | 10 mm x 120 mm x 80 mm |
| Light source | LED, Red |
| Output Type | Digital switching output |
Leuze NPN Fork Photoelctric Sensor GS04B/N.1-100-M8.3, 50146183 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 04B |
| Application | Detection of small parts |
| MTTF | 700.42 years |
| Light source | LED, Red |
| Wavelength | 660 nm |
| Laser class | - |
| Transmitted-signal shape | Pulsed |
| Minimum object diameter | 0.3 mm |
| Power Supply | 10 ... 30 V, DC |
| Open-circuit current | 0 ... 30 mA |
| Switching hysteresis | 100 µm |
| Number of digital switching outputs | 1 Piece(s) |
| Output Type | Digital switching output |
| Switching current, max. | 100 mA |
| Switching voltage | high: ≥(UB-2V) low: ≤ 2 V |
| Switching element | Transistor, NPN |
| Switching principle | Light/dark switchable |
| Switching frequency | 5,000 Hz |
| Response time | 0.1 ms |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M8 Connector, 3 -pin |
| Design | Fork |
| Mouth width | 100 mm |
| Mouth depth | 55 mm |
| Dimension (W x H x L) | 10 mm x 120 mm x 80 mm |
| Housing material | Metal; Diecast zinc |
| Lens cover material | Glass |
| Housing color | Black, RAL 9005 |
| Type of fastening | Through-hole mounting |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | -25 ... 60 °C |
| Degree of protection | IP 67 |
| Net weight | 132 g |
Give Us a Call for Leuze NPN Fork Photoelctric Sensor GS04B/N.1-100-M8.3 part no: 50146183 at the lowest pricing. In-depth Technical Analysis of GS04B/N.1-100-M8.3, 50146183 feature 04B series, LED, Red Light Source, 660 nm Wavelength, 0.3 mm minimum object dimeter, 10 ... 30 V, DC power supply, 100 µm switching hysteresis, 100 mA switching current , Transistor, NPN switching element, Light/dark switchable output, 5,000 Hz frequency, M8 Connector, 3 -pin connection, Fork design, 100 mm mouth width, 55 mm mouth depth, 10 mm x 120 mm x 80 mm dimensions, 1 Piece(s) LEDs, Black, RAL 9005 color, IP 67 degree of protection. Elevate Your Project with a Quote for your requirement of Leuze NPN Fork Photoelctric Sensor. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
