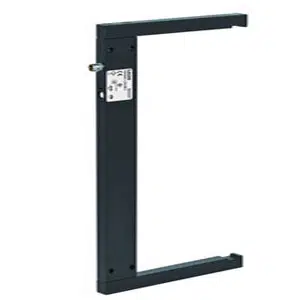

GS04B/N.1-220-M8.3: 50146186 - Leuze Transistor NPN Fork Sensor
Technical Specifications of Leuze GS04B/N.1-220-M8.3 50146186:
| Spec | Value |
|---|---|
| Design | Fork |
| Dimension (W x H x L) | 12 mm x 244 mm x 140 mm |
| Light source | LED, Red |
| Output Type | Digital switching output |
Leuze Transistor NPN Fork Sensor GS04B/N.1-220-M8.3, 50146186 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 04B |
| Application | Detection of small parts |
| MTTF | 700.42 years |
| Light source | LED, Red |
| Wavelength | 660 nm |
| Laser class | - |
| Transmitted-signal shape | Pulsed |
| Minimum object diameter | 1 mm |
| Power Supply | 10 ... 30 V, DC |
| Open-circuit current | 0 ... 30 mA |
| Switching hysteresis | 100 µm |
| Number of digital switching outputs | 1 Piece(s) |
| Output Type | Digital switching output |
| Switching current, max. | 100 mA |
| Switching voltage | high: ≥(UB-2V) low: ≤ 2 V |
| Switching element | Transistor, NPN |
| Switching principle | Light/dark switchable |
| Switching frequency | 5,000 Hz |
| Response time | 0.1 ms |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M8 Connector, 3 -pin |
| Design | Fork |
| Mouth width | 220 mm |
| Mouth depth | 110 mm |
| Dimension (W x H x L) | 12 mm x 244 mm x 140 mm |
| Housing material | Metal; Diecast zinc |
| Lens cover material | Glass |
| Housing color | Black, RAL 9005 |
| Type of fastening | Through-hole mounting |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | -25 ... 60 °C |
| Degree of protection | IP 67 |
| Net weight | 432 g |
Mail Us for your needs in Leuze Transistor NPN Fork Sensor GS04B/N.1-220-M8.3 part no: 50146186 with budget-friendly prices. The Main Technical Parameters of GS04B/N.1-220-M8.3, 50146186 include 04B series, LED, Red Light Source, 660 nm Wavelength, 1 mm minimum object dimeter, 10 ... 30 V, DC power supply, 100 µm switching hysteresis, 100 mA switching current , Transistor, NPN switching element, Light/dark switchable output, 5,000 Hz frequency, M8 Connector, 3 -pin connection, Fork design, 220 mm mouth width, 110 mm mouth depth, 12 mm x 244 mm x 140 mm dimensions, 1 Piece(s) LEDs, Black, RAL 9005 color, IP 67 degree of protection. Customize Your Experience with a Quote for your requirement of Leuze Transistor NPN Fork Sensor. Experience the difference with our competitive pricing and superior support over other Suppliers.
