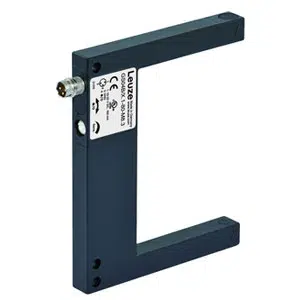

GS04B/N.1-80-M8.3: 50146181 - Leuze 55mm Mouth Depth Fork Sensor
Technical Specifications of Leuze GS04B/N.1-80-M8.3 50146181:
| Spec | Value |
|---|---|
| Design | Fork |
| Dimension (W x H x L) | 10 mm x 100 mm x 80 mm |
| Light source | LED, Red |
| Output Type | Digital switching output |
Leuze 55mm Mouth Depth Fork Sensor GS04B/N.1-80-M8.3, 50146181 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 04B |
| Application | Detection of small parts |
| MTTF | 700.42 years |
| Light source | LED, Red |
| Wavelength | 660 nm |
| Laser class | - |
| Transmitted-signal shape | Pulsed |
| Minimum object diameter | 0.3 mm |
| Power Supply | 10 ... 30 V, DC |
| Open-circuit current | 0 ... 30 mA |
| Switching hysteresis | 100 µm |
| Number of digital switching outputs | 1 Piece(s) |
| Output Type | Digital switching output |
| Switching current, max. | 100 mA |
| Switching voltage | high: ≥(UB-2V) low: ≤ 2 V |
| Switching element | Transistor, NPN |
| Switching principle | Light/dark switchable |
| Switching frequency | 5,000 Hz |
| Response time | 0.1 ms |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M8 Connector, 3 -pin |
| Design | Fork |
| Mouth width | 80 mm |
| Mouth depth | 55 mm |
| Dimension (W x H x L) | 10 mm x 100 mm x 80 mm |
| Housing material | Metal; Diecast zinc |
| Lens cover material | Glass |
| Housing color | Black, RAL 9005 |
| Type of fastening | Through-hole mounting |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | -25 ... 60 °C |
| Degree of protection | IP 67 |
| Net weight | 118 g |
Send Your Inquiry for Leuze 55mm Mouth Depth Fork Sensor GS04B/N.1-80-M8.3 part no: 50146181 with cost-effective solutions. Essential Technical Specs of GS04B/N.1-80-M8.3, 50146181 are 04B series, LED, Red Light Source, 660 nm Wavelength, 0.3 mm minimum object dimeter, 10 ... 30 V, DC power supply, 100 µm switching hysteresis, 100 mA switching current , Transistor, NPN switching element, Light/dark switchable output, 5,000 Hz frequency, M8 Connector, 3 -pin connection, Fork design, 80 mm mouth width, 55 mm mouth depth, 10 mm x 100 mm x 80 mm dimensions, 1 Piece(s) LEDs, Black, RAL 9005 color, IP 67 degree of protection. Capture the Best Deal with a Quote for your requirement of Leuze 55mm Mouth Depth Fork Sensor. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
