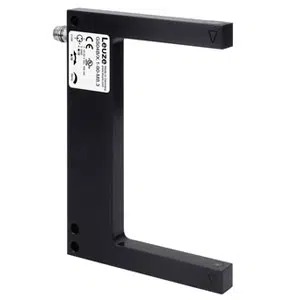

GS04B/N.1-90-M8.3: 50146182 - Leuze Metal Fork Photoelectric Sensor
Technical Specifications of Leuze GS04B/N.1-90-M8.3 50146182:
| Spec | Value |
|---|---|
| Design | Fork |
| Dimension (W x H x L) | 10 mm x 110 mm x 80 mm |
| Light source | LED, Red |
| Output Type | Digital switching output |
Leuze Metal Fork Photoelectric Sensor GS04B/N.1-90-M8.3, 50146182 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 04B |
| Application | Detection of small parts |
| MTTF | 700.42 years |
| Light source | LED, Red |
| Wavelength | 660 nm |
| Laser class | - |
| Transmitted-signal shape | Pulsed |
| Minimum object diameter | 0.3 mm |
| Power Supply | 10 ... 30 V, DC |
| Open-circuit current | 0 ... 30 mA |
| Switching hysteresis | 100 µm |
| Number of digital switching outputs | 1 Piece(s) |
| Output Type | Digital switching output |
| Switching current, max. | 100 mA |
| Switching voltage | high: ≥(UB-2V) low: ≤ 2 V |
| Switching element | Transistor, NPN |
| Switching principle | Light/dark switchable |
| Switching frequency | 5,000 Hz |
| Response time | 0.1 ms |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M8 Connector, 3 -pin |
| Design | Fork |
| Mouth width | 90 mm |
| Mouth depth | 55 mm |
| Dimension (W x H x L) | 10 mm x 110 mm x 80 mm |
| Housing material | Metal; Aluminum |
| Lens cover material | Glass |
| Housing color | Black, RAL 9005 |
| Type of fastening | Through-hole mounting |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | -25 ... 60 °C |
| Degree of protection | IP 67 |
| Net weight | 70 g |
Please speak to our Technical Engineer for Leuze Metal Fork Photoelectric Sensor GS04B/N.1-90-M8.3 part no: 50146182 at attractive prices. Technical Specs Summary of GS04B/N.1-90-M8.3, 50146182 includes 04B series, LED, Red Light Source, 660 nm Wavelength, 0.3 mm minimum object dimeter, 10 ... 30 V, DC power supply, 100 µm switching hysteresis, 100 mA switching current , Transistor, NPN switching element, Light/dark switchable output, 5,000 Hz frequency, M8 Connector, 3 -pin connection, Fork design, 90 mm mouth width, 55 mm mouth depth, 10 mm x 110 mm x 80 mm dimensions, 1 Piece(s) LEDs, Black, RAL 9005 color, IP 67 degree of protection. Match Your Needs with a Quote for your requirement of Leuze Metal Fork Photoelectric Sensor. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
