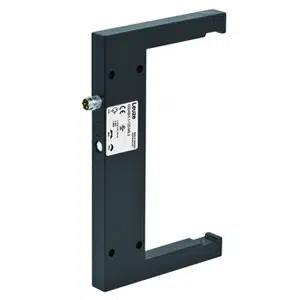

GS04B/P.1-120-M8.3: 50146170 - Leuze 120mm Mouth width Fork Sensors
Technical Specifications of Leuze GS04B/P.1-120-M8.3 50146170:
| Spec | Value |
|---|---|
| Design | Fork |
| Dimension (W x H x L) | 12 mm x 144 mm x 90 mm |
| Light source | LED, Red |
| Output Type | Digital switching output |
Leuze 120mm Mouth width Fork Sensors GS04B/P.1-120-M8.3, 50146170 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 04B |
| Application | Detection of small parts |
| MTTF | 700.42 years |
| Light source | LED, Red |
| Wavelength | 660 nm |
| Laser class | - |
| Transmitted-signal shape | Pulsed |
| Minimum object diameter | 0.5 mm |
| Power Supply | 10 ... 30 V, DC |
| Open-circuit current | 0 ... 30 mA |
| Switching hysteresis | 100 µm |
| Number of digital switching outputs | 1 Piece(s) |
| Output Type | Digital switching output |
| Switching current, max. | 100 mA |
| Switching voltage | high: ≥(UB-2V) low: ≤ 2 V |
| Switching element | Transistor, PNP |
| Switching principle | Light/dark switchable |
| Switching frequency | 5,000 Hz |
| Response time | 0.1 ms |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M8 Connector, 3 -pin |
| Design | Fork |
| Mouth width | 120 mm |
| Mouth depth | 60 mm |
| Dimension (W x H x L) | 12 mm x 144 mm x 90 mm |
| Housing material | Metal; Diecast zinc |
| Lens cover material | Glass |
| Housing color | Black, RAL 9005 |
| Type of fastening | Through-hole mounting |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | -25 ... 60 °C |
| Degree of protection | IP 67 |
| Net weight | 244 g |
Talk to Our Engineer for Leuze 120mm Mouth width Fork Sensors GS04B/P.1-120-M8.3 part no: 50146170 with special pricing. Detailed Specifications of GS04B/P.1-120-M8.3, 50146170 include 04B series, LED, Red Light Source, 660 nm Wavelength, 0.5 mm minimum object dimeter, 10 ... 30 V, DC power supply, 100 µm switching hysteresis, 100 mA switching current , Transistor, PNP switching element, Light/dark switchable output, 5,000 Hz frequency, M8 Connector, 3 -pin connection, Fork design, 120 mm mouth width, 60 mm mouth depth, 12 mm x 144 mm x 90 mm dimensions, 1 Piece(s) LEDs, Black, RAL 9005 color, IP 67 degree of protection. Take the First Step with a Quote for your requirement of Leuze 120mm Mouth width Fork Sensors. Our commitment to better pricing and exceptional support sets us apart from other Dealers & Distributors.
