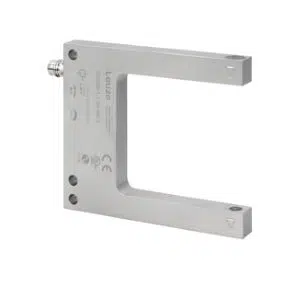

GS08B/1.1-50-M8.3: 50146192 - Leuze Silver Color Fork Photoelectric Sensor
Technical Specifications of Leuze GS08B/1.1-50-M8.3 50146192:
| Spec | Value |
|---|---|
| Design | Fork |
| Dimension (W x H x L) | 10 mm x 70 mm x 80 mm |
| Light source | LED, Red |
| Output Type | Digital switching output |
Leuze Silver Color Fork Photoelectric Sensor GS08B/1.1-50-M8.3, 50146192 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 08B |
| Application | Detection of small parts |
| MTTF | 700.42 years |
| Light source | LED, Red |
| Wavelength | 660 nm |
| Laser class | 1, IEC/EN 60825-1:2007 |
| Transmitted-signal shape | Pulsed |
| Minimum object diameter | 0.3 mm |
| Power Supply | 10 ... 30 V, DC |
| Open-circuit current | 0 ... 30 mA |
| Switching hysteresis | 100 µm |
| Number of digital switching outputs | 1 Piece(s) |
| Output Type | Digital switching output |
| Switching current, max. | 100 mA |
| Switching voltage | high: ≥(UB-2V) low: ≤ 2 V |
| Switching element | Transistor, Push-pull |
| Switching principle | IO-Link / light switching (NPN) / dark switching (PNP) |
| Switching frequency | 5,000 Hz |
| Response time | 0.1 ms |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M8 Connector, 3 -pin |
| Design | Fork |
| Mouth width | 50 mm |
| Mouth depth | 55 mm |
| Dimension (W x H x L) | 10 mm x 70 mm x 80 mm |
| Housing material | Stainless steel; V4A |
| Lens cover material | Glass |
| Housing color | Silver |
| Type of fastening | Through-hole mounting |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | -25 ... 60 °C |
| Degree of protection | IP 67 |
| Net weight | 112 g |
Give Us a Call for Leuze Silver Color Fork Photoelectric Sensor GS08B/1.1-50-M8.3 part no: 50146192 at affordable rates. Specifications Overview for GS08B/1.1-50-M8.3, 50146192 includes 08B series, LED, Red Light Source, 660 nm Wavelength, 0.3 mm minimum object dimeter, 10 ... 30 V, DC power supply, 100 µm switching hysteresis, 100 mA switching current , Transistor, Push-pull switching element, IO-Link / light switching (NPN) / dark switching (PNP) output, 5,000 Hz frequency, M8 Connector, 3 -pin connection, Fork design, 50 mm mouth width, 55 mm mouth depth, 10 mm x 70 mm x 80 mm dimensions, 1 Piece(s) LEDs, Silver color, IP 67 degree of protection. Unlock Exclusive Pricing with a Quote for your requirement of Leuze Silver Color Fork Photoelectric Sensor. We're committed to offering more favorable pricing and more responsive support than other Distributors.
