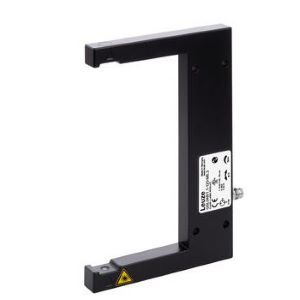

GSL04B/1.1-120-M8.3: 50146190 - Leuze M8 Connector 3-pin Fork Sensors
Technical Specifications of Leuze GSL04B/1.1-120-M8.3 50146190:
| Spec | Value |
|---|---|
| Design | Fork |
| Dimension (W x H x L) | 12 mm x 144 mm x 90 mm |
| Light source | Laser, Red |
| Output Type | Digital switching output |
Leuze M8 Connector 3-pin Fork Sensors GSL04B/1.1-120-M8.3, 50146190 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 04B |
| Application | Detection of small parts |
| MTTF | 547.3 years |
| Light source | Laser, Red |
| Wavelength | 655 nm |
| Laser class | 1, IEC/EN 60825-1:2007 |
| Transmitted-signal shape | Pulsed |
| Minimum object diameter | 0.1 mm |
| Power Supply | 10 ... 30 V, DC |
| Open-circuit current | 0 ... 30 mA |
| Switching hysteresis | 20 µm |
| Number of digital switching outputs | 1 Piece(s) |
| Output Type | Digital switching output |
| Switching current, max. | 100 mA |
| Switching voltage | high: ≥(UB-2V) low: ≤ 2 V |
| Switching element | Transistor, Push-pull |
| Switching principle | IO-Link / light switching (NPN) / dark switching (PNP) |
| Switching frequency | 5,000 Hz |
| Response time | 0.1 ms |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M8 Connector, 3 -pin |
| Design | Fork |
| Mouth width | 120 mm |
| Mouth depth | 60 mm |
| Dimension (W x H x L) | 12 mm x 144 mm x 90 mm |
| Housing material | Metal; Diecast zinc |
| Lens cover material | Glass |
| Housing color | Black, RAL 9005 |
| Type of fastening | Through-hole mounting |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | -25 ... 60 °C |
| Degree of protection | IP 67 |
| Net weight | 244 g |
IndMALL Automation Dealing offers Leuze M8 Connector 3-pin Fork Sensors GSL04B/1.1-120-M8.3 part no: 50146190 at unbeatable prices. The Main Technical Parameters of GSL04B/1.1-120-M8.3, 50146190 feature 04B series, Laser, Red Light Source, 655 nm Wavelength, 0.1 mm minimum object dimeter, 10 ... 30 V, DC power supply, 20 µm switching hysteresis, 100 mA switching current , Transistor, Push-pull switching element, IO-Link / light switching (NPN) / dark switching (PNP) output, 5,000 Hz frequency, M8 Connector, 3 -pin connection, Fork design, 120 mm mouth width, 60 mm mouth depth, 12 mm x 144 mm x 90 mm dimensions, 1 Piece(s) LEDs, Black, RAL 9005 color, IP 67 degree of protection. Take the First Step with a Quote for your requirement of Leuze M8 Connector 3-pin Fork Sensors. Choose us for unparalleled pricing and support over other Dealers & Distributors.
