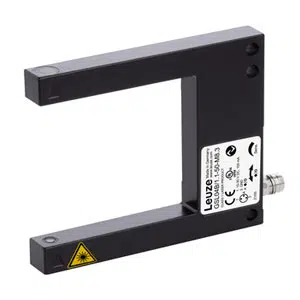

GSL04B/1.1-50-M8.3: 50146188 - Leuze M8 Connector Fork Sensor
Technical Specifications of Leuze GSL04B/1.1-50-M8.3 50146188:
| Spec | Value |
|---|---|
| Design | Fork |
| Dimension (W x H x L) | 10 mm x 70 mm x 80 mm |
| Light source | Laser, Red |
| Output Type | Digital switching output |
Leuze M8 Connector Fork Sensor GSL04B/1.1-50-M8.3, 50146188 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 04B |
| Application | Detection of small parts |
| MTTF | 548.35 years |
| Light source | Laser, Red |
| Wavelength | 655 nm |
| Laser class | 1, IEC/EN 60825-1:2007 |
| Transmitted-signal shape | Pulsed |
| Minimum object diameter | 0.05 mm |
| Power Supply | 10 ... 30 V, DC |
| Open-circuit current | 0 ... 30 mA |
| Switching hysteresis | 20 µm |
| Number of digital switching outputs | 1 Piece(s) |
| Output Type | Digital switching output |
| Switching current, max. | 100 mA |
| Switching voltage | high: ≥(UB-2V) low: ≤ 2 V |
| Switching element | Transistor, Push-pull |
| Switching principle | IO-Link / light switching (NPN) / dark switching (PNP) |
| Switching frequency | 5,000 Hz |
| Response time | 0.1 ms |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M8 Connector, 3 -pin |
| Design | Fork |
| Mouth width | 50 mm |
| Mouth depth | 55 mm |
| Dimension (W x H x L) | 10 mm x 70 mm x 80 mm |
| Housing material | Metal; Diecast zinc |
| Lens cover material | Glass |
| Housing color | Black, RAL 9005 |
| Type of fastening | Through-hole mounting |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | -25 ... 60 °C |
| Degree of protection | IP 67 |
| Net weight | 96 g |
Ask for the Pricing of Leuze M8 Connector Fork Sensor GSL04B/1.1-50-M8.3 part no: 50146188 at unbeatable prices. Detailed Specifications of GSL04B/1.1-50-M8.3, 50146188 feature 04B series, Laser, Red Light Source, 655 nm Wavelength, 0.05 mm minimum object dimeter, 10 ... 30 V, DC power supply, 20 µm switching hysteresis, 100 mA switching current , Transistor, Push-pull switching element, IO-Link / light switching (NPN) / dark switching (PNP) output, 5,000 Hz frequency, M8 Connector, 3 -pin connection, Fork design, 50 mm mouth width, 55 mm mouth depth, 10 mm x 70 mm x 80 mm dimensions, 1 Piece(s) LEDs, Black, RAL 9005 color, IP 67 degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze M8 Connector Fork Sensor. We're committed to offering more favorable pricing and more responsive support than other Traders.
