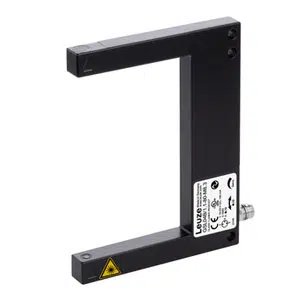

GSL04B/1.1-80-M8.3: 50146189 - Leuze IO-Link Fork Photoelectric Sensor
Technical Specifications of Leuze GSL04B/1.1-80-M8.3 50146189:
| Spec | Value |
|---|---|
| Design | Fork |
| Dimension (W x H x L) | 10 mm x 100 mm x 80 mm |
| Light source | Laser, Red |
| Output Type | Digital switching output |
Leuze IO-Link Fork Photoelectric Sensor GSL04B/1.1-80-M8.3, 50146189 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 04B |
| Application | Detection of small parts |
| MTTF | 548.35 years |
| Light source | Laser, Red |
| Wavelength | 655 nm |
| Laser class | 1, IEC/EN 60825-1:2007 |
| Transmitted-signal shape | Pulsed |
| Minimum object diameter | 0.05 mm |
| Power Supply | 10 ... 30 V, DC |
| Open-circuit current | 0 ... 30 mA |
| Switching hysteresis | 20 µm |
| Number of digital switching outputs | 1 Piece(s) |
| Output Type | Digital switching output |
| Switching current, max. | 100 mA |
| Switching voltage | high: ≥(UB-2V) low: ≤ 2 V |
| Switching element | Transistor, Push-pull |
| Switching principle | IO-Link / light switching (NPN) / dark switching (PNP) |
| Switching frequency | 5,000 Hz |
| Response time | 0.1 ms |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M8 Connector, 3 -pin |
| Design | Fork |
| Mouth width | 80 mm |
| Mouth depth | 55 mm |
| Dimension (W x H x L) | 10 mm x 100 mm x 80 mm |
| Housing material | Metal; Diecast zinc |
| Lens cover material | Glass |
| Housing color | Black, RAL 9005 |
| Type of fastening | Through-hole mounting |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | -25 ... 60 °C |
| Degree of protection | IP 67 |
| Net weight | 118 g |
Get A Quote for Leuze IO-Link Fork Photoelectric Sensor GSL04B/1.1-80-M8.3 part no: 50146189 at the best price. Here are the brief Technical Specifications of GSL04B/1.1-80-M8.3, 50146189 are 04B series, Laser, Red Light Source, 655 nm Wavelength, 0.05 mm minimum object dimeter, 10 ... 30 V, DC power supply, 20 µm switching hysteresis, 100 mA switching current , Transistor, Push-pull switching element, IO-Link / light switching (NPN) / dark switching (PNP) output, 5,000 Hz frequency, M8 Connector, 3 -pin connection, Fork design, 80 mm mouth width, 55 mm mouth depth, 10 mm x 100 mm x 80 mm dimensions, 1 Piece(s) LEDs, Black, RAL 9005 color, IP 67 degree of protection. It's Time to get a Quote for your requirement of Leuze IO-Link Fork Photoelectric Sensor. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
