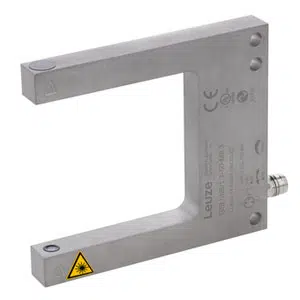

GSL08B/1.1-50-M8.3: 50146196 - Leuze 0.05 mm Diameter Fork Sensor
Technical Specifications of Leuze GSL08B/1.1-50-M8.3 50146196:
| Spec | Value |
|---|---|
| Design | Fork |
| Dimension (W x H x L) | 10 mm x 70 mm x 80 mm |
| Light source | Laser, Red |
| Output Type | Digital switching output |
Leuze 0.05 mm Diameter Fork Sensor GSL08B/1.1-50-M8.3, 50146196 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 08B |
| Application | Detection of small parts |
| MTTF | 548.35 years |
| Light source | Laser, Red |
| Wavelength | 655 nm |
| Laser class | 1, IEC/EN 60825-1:2007 |
| Transmitted-signal shape | Pulsed |
| Minimum object diameter | 0.05 mm |
| Power Supply | 10 ... 30 V, DC |
| Open-circuit current | 0 ... 30 mA |
| Switching hysteresis | 20 µm |
| Number of digital switching outputs | 1 Piece(s) |
| Output Type | Digital switching output |
| Switching current, max. | 100 mA |
| Switching voltage | high: ≥(UB-2V) low: ≤ 2 V |
| Switching element | Transistor, Push-pull |
| Switching principle | IO-Link / light switching (NPN) / dark switching (PNP) |
| Switching frequency | 5,000 Hz |
| Response time | 0.1 ms |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M8 Connector, 3 -pin |
| Design | Fork |
| Mouth width | 50 mm |
| Mouth depth | 55 mm |
| Dimension (W x H x L) | 10 mm x 70 mm x 80 mm |
| Housing material | Stainless steel; V4A |
| Lens cover material | Glass |
| Housing color | Silver |
| Type of fastening | Through-hole mounting |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | -25 ... 60 °C |
| Degree of protection | IP 67 |
| Net weight | 112 g |
Mail us for Leuze 0.05 mm Diameter Fork Sensor GSL08B/1.1-50-M8.3 part no: 50146196 with budget-friendly prices. Technical Details of GSL08B/1.1-50-M8.3, 50146196 are 08B series, Laser, Red Light Source, 655 nm Wavelength, 0.05 mm minimum object dimeter, 10 ... 30 V, DC power supply, 20 µm switching hysteresis, 100 mA switching current , Transistor, Push-pull switching element, IO-Link / light switching (NPN) / dark switching (PNP) output, 5,000 Hz frequency, M8 Connector, 3 -pin connection, Fork design, 50 mm mouth width, 55 mm mouth depth, 10 mm x 70 mm x 80 mm dimensions, 1 Piece(s) LEDs, Silver color, IP 67 degree of protection. Elevate Your Project with a Quote for your requirement of Leuze 0.05 mm Diameter Fork Sensor. Rest assured, our pricing and support outshine other Suppliers.
