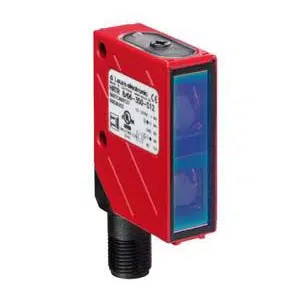

Leuze HRT 8/66.6-350-S12 | 50039650
Technical Specifications of Leuze HRT 8/66.6-350-S12 50039650:
| Spec | Value |
|---|---|
| Design | Cubic |
| Sensing Distance | 0.007 ... 0.35 m |
| Light Source | LED, Infrared |
| Wavelength | 870 nm |
Leuze Connector, Turning, 90° Diffuse sensors HRT 8/66.6-350-S12 - 50039650 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Special version | - |
| Sensing Distance | 0.007 ... 0.35 m |
| Beam path | - |
| Light source | LED, Infrared |
| Wavelength | 870 nm |
| Type of light spot geometry | Rectangular |
| Light spot size [at sensor distance] | - |
| Measurement range | - |
| Supply voltage UB | 10 ... 30 V, DC |
| Switching Output 1 | Transistor, Push-pull |
| Switching principle | Light switching (PNP)/dark switching (NPN) |
| Switching Output 2 | Transistor, Push-pull |
| Switching principle | Dark switching (PNP)/light switching (NPN) |
| Switching frequency | 1,000 Hz |
| Response time | 0.33 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector, Turning, 90° |
| Thread size | M12 |
| Type | Male |
| Material | - |
| No. of pins | 5 -pin |
| Dimension (W x H x L) | 15 mm x 48 mm x 38 mm |
| Housing material | Metal |
| Plastic housing | Zinc |
| Lens cover material | Glass |
| Housing color | Red |
| Type of display | LED |
| Operational controls | - |
| Ambient temperature, operation | -40 ... 60 °C |
| Ambient temperature, storage | -40 ... 70 °C |
| Degree of protection | IP 67/IP 69K |
IndMALL Automation Dealing offers HRT 8/66.6-350-S12 part no.50039650 at unbeatable prices. The Main Technical Parameters of HRT 8/66.6-350-S12 are Cubic, Design -, 15 mm x 48 mm x 38 mm Dimension, LED, Infrared Light source, Transistor, Push-pull Switching Outputs1, Light switching (PNP)/dark switching (NPN) Switching principle, 10 ... 30 V, DC Supply voltage UB, 0.007 ... 0.35 m Sensing Distance, Connector, Turning, 90° Type of connection, Metal Housing material, IP 67/IP 69K degree of protection. Take the First Step with a Quote for your requirement of Leuze Connector, Turning, 90° Diffuse sensors. Choose us for unparalleled pricing and support over other Dealers & Distributors.
