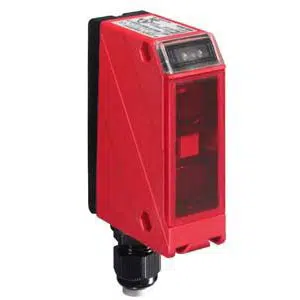

Leuze HRT 96K/P-1600-1200-41 | 50025133
Technical Specifications of Leuze Diffuse reflection principle with background suppression HRT 96K/P-1600-1200-41:
| Spec | Value |
|---|---|
| Design | Cubic |
| Sensing Distance | 0.1 ... 1.2 m |
| Switching Output | Transistor, PNP |
| Typt of Connection | Connector |
Leuze Diffuse reflection principle with background suppression HRT 96K/P-1600-1200-41 - 50025133 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Special version | - |
| Sensing Distance | 0.1 ... 1.2 m |
| Beam path | - |
| Light source | LED, Infrared |
| Wavelength | - |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC |
| Analog Output 1 | - |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching |
| Switching Output 2 | Transistor, PNP |
| Switching principle | Dark switching |
| Switching frequency | 300 Hz |
| Response time | - |
| Function | - |
| Type of connection | Connector |
| Thread size | M12 |
| Type | - |
| Material | Plastic |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 30 mm x 90 mm x 70 mm |
| Housing material | Plastic |
| Lens cover material | Plastic |
| Housing color | - |
| Type of display | LED |
| Operational controls | Multiturn potentiometer |
| Ambient temperature, operation | -40 ... 55 °C |
| Ambient temperature, storage | - |
| Degree of protection | IP 67 |
Reach Us by Email for Leuze Diffuse reflection principle with background suppression HRT 96K/P-1600-1200-41 part no: 50025133 at Discounted Rates. Key Technical Features of HRT 96K/P-1600-1200-41, 50025133 are Cubic, Design Diffuse reflection principle with background suppression, 30 mm x 90 mm x 70 mm Dimension, LED, Infrared Light source, Transistor, PNP Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC Supply voltage UB, 0.1 ... 1.2 m Sensing Distance, 4 -pin No. of pins, Plastic Housing material, IP 67 degree of protection. Navigate Your Needs with a Quote for your requirement of Leuze Diffuse reflection principle with background suppression. Our pricing and support are unrivaled, especially when compared to other Competitors.
