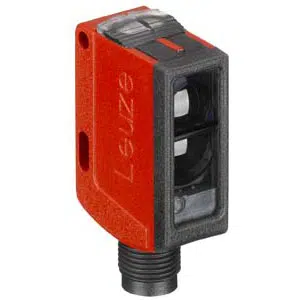

Leuze HRT25B/L6.32-2500,200-S12 | 50145332
Technical Specifications of Leuze HRT25B/L6.32-2500,200-S12 50145332:
| Spec | Value |
|---|---|
| Design | Cubic |
| Operating Principle | Distance diffuse sensor with background suppression |
| Sensing Distance | 0.05 ... 2.5 m |
| Light Source | LED, Infrared |
Leuze Teach via IO-Link diffuse sensor HRT25B/L6.32-2500,200-S12 - 50145332 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating Principle | Distance diffuse sensor with background suppression |
| Sensing Distance | 0.05 ... 2.5 m |
| Beam Path | Divergent |
| Light Source | LED, Infrared |
| Wavelength | 850 nm |
| Supply Voltage UB | 18 ... 30 V, DC |
| Switching Output | Transistor, Push-pull |
| Switching principle | O-Link / light switching (PNP)/dark switching (NPN) |
| Switching frequency | 30 Hz |
| Response time | 70 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable with connector |
| Cable length | 200 mm |
| Sheathing material | PUR |
| Cable color | Black |
| Number of Conductors | 4 -wire |
| Wire cross section | 0.15 mm² |
| Thread size | M12 |
| Type | Male |
| Material | Plastic |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 15 mm x 38.9 mm x 28.7 mm |
| Housing material | Plastic |
| Plastic housing | PC-ABS |
| Lens cover material | Plastic / PMMA |
| Housing color | Red |
| Type of display | LED |
| Ambient temperature, operation | -30 ... 50 °C |
| Ambient temperature, storage | -40 ... 60 °C |
| Degree of protection | IP 66/IP 67 |
Talk to Our Engineer for HRT25B/L6.32-2500,200-S12 part no.50145332 at competitive rates. Here are the brief Technical Specifications of HRT25B/L6.32-2500,200-S12 are Cubic, Design Distance diffuse sensor with background suppression, 15 mm x 38.9 mm x 28.7 mm Dimension, LED, Infrared Light source, Transistor, Push-pull Switching Outputs 1, O-Link / light switching (PNP)/dark switching (NPN) Switching principle, 18 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.05 ... 2.5 m Sensing Distance, Cable with connector Type of connection, Plastic Housing material, IP 66/IP 67 degree of protection. It's Time to get a Quote for your requirement of Leuze Teach via IO-Link diffuse sensor. We guarantee unmatched pricing and unparalleled support compared to other Dealers.
