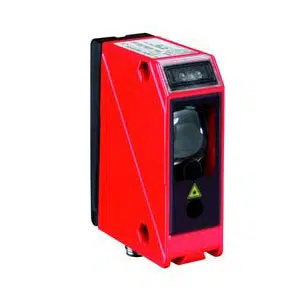

Leuze HRTIL 96B M/66.03S-S12 | 50117920
Technical Specifications of Leuze 10 Hz Switching frequency diffuse sensor HRTIL 96B M/66.03S-S12:
| Spec | Value |
|---|---|
| Design | Cubic |
| Sensing Distance | 0.1 ... 6 m |
| Switching Output | Transistor, Push-pull |
| Typt of Connection | Connector |
Leuze 10 Hz Switching frequency diffuse sensor HRTIL 96B M/66.03S-S12 - 50117920 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Special version | 2 independent switching outputs Small light spot (S) |
| Sensing Distance | 0.1 ... 6 m |
| Beam path | - |
| Light source | Laser, Infrared |
| Wavelength | 785 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 18 ... 30 V, DC |
| Analog Output 1 | - |
| Switching Output 1 | Transistor, Push-pull |
| Switching principle | Dark switching |
| Switching Output 2 | Transistor, Push-pull |
| Switching principle | Dark switching |
| Switching frequency | 10 Hz |
| Response time | 5 ms |
| Function | Signal IN Voltage supply |
| Type of connection | Connector |
| Thread size | M12 |
| Type | Male |
| Material | Metal |
| No. of pins | 5 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 30 mm x 90 mm x 70 mm |
| Housing material | Metal |
| Lens cover material | Glass |
| Housing color | Red |
| Type of display | LED |
| Operational controls | Teach button |
| Ambient temperature, operation | -40 ... 50 °C |
| Ambient temperature, storage | -35 ... 70 °C |
| Degree of protection | IP 67 / IP 69K |
Ask for the Pricing of Leuze 10 Hz Switching frequency diffuse sensor HRTIL 96B M/66.03S-S12 part no: 50117920 at unbeatable prices. Detailed Specifications of HRTIL 96B M/66.03S-S12, 50117920 feature Cubic, Design Diffuse reflection principle with background suppression, 30 mm x 90 mm x 70 mm Dimension, Laser, Infrared Light source, Transistor, Push-pull Switching Outputs 1, Dark switching Switching principle, 18 ... 30 V, DC Supply voltage UB, 0.1 ... 6 m Sensing Distance, 5 -pin No. of pins, Metal Housing material, IP 67 / IP 69K degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze 10 Hz Switching frequency diffuse sensor. We're committed to offering more favorable pricing and more responsive support than other Traders.
